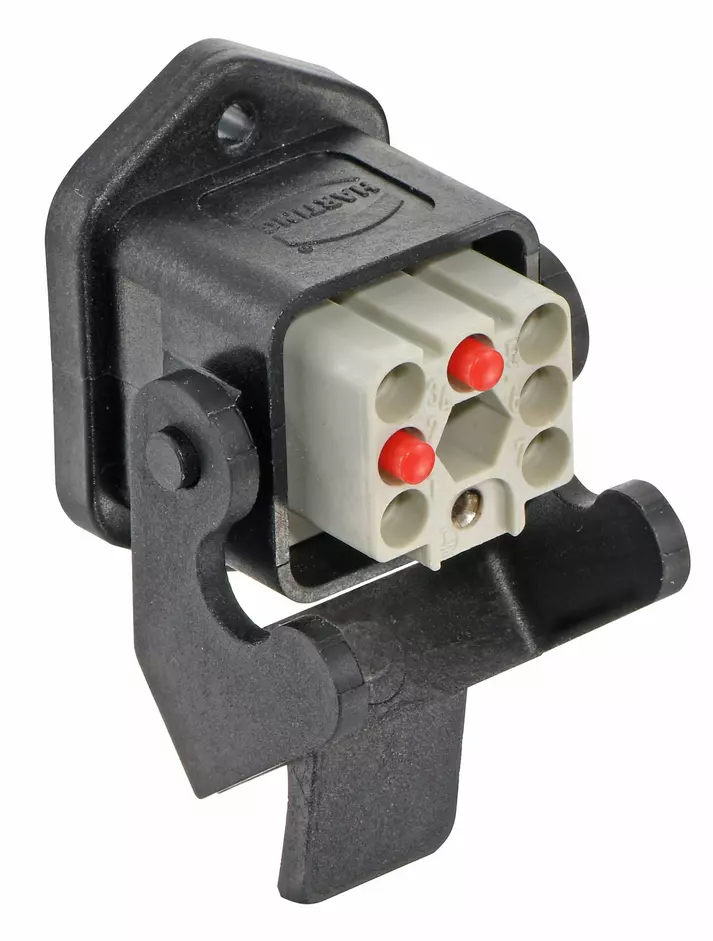

Han Protect 3A HBM 4/2 fused

Article No.: 10 81 007 0302

New

Image is for illustration purposes only. Please refer to product description.

New

Connector sets

Article No.: 10 81 007 0302

to see prices and availability.

to see prices and availability.

Connector sets

Female

Rated current: ‌4 A

Contacts: 4 2 Contacts fused

Bulkhead mounted housing

Size: 3 A

Single locking lever

Material: Polycarbonate (PC)

Degree of protection: IP54

Identification

Version

Technical characteristics

Rated current	‌ 4 A
Rated voltage	24 V
Tightening torque	‌1 Nm Fixing screws M3
Limiting temperature	-25 ... +70 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP54

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material (hood/housing)	Polycarbonate (PC)
Colour (hood/housing)	RAL 9005 (jet black)
Material (seal)	NBR
Material (locking)	Polycarbonate (PC)
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	5dbb3851-b94e-4e88-97a1-571845975242
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Commercial data

Packaging size	10
Net weight	59.5 g
European customs tariff number	85366990
GTIN	5713140435056
eCl@ss	27440113 Rectangular connectors (set)
UNSPSC 24.0	39121408
