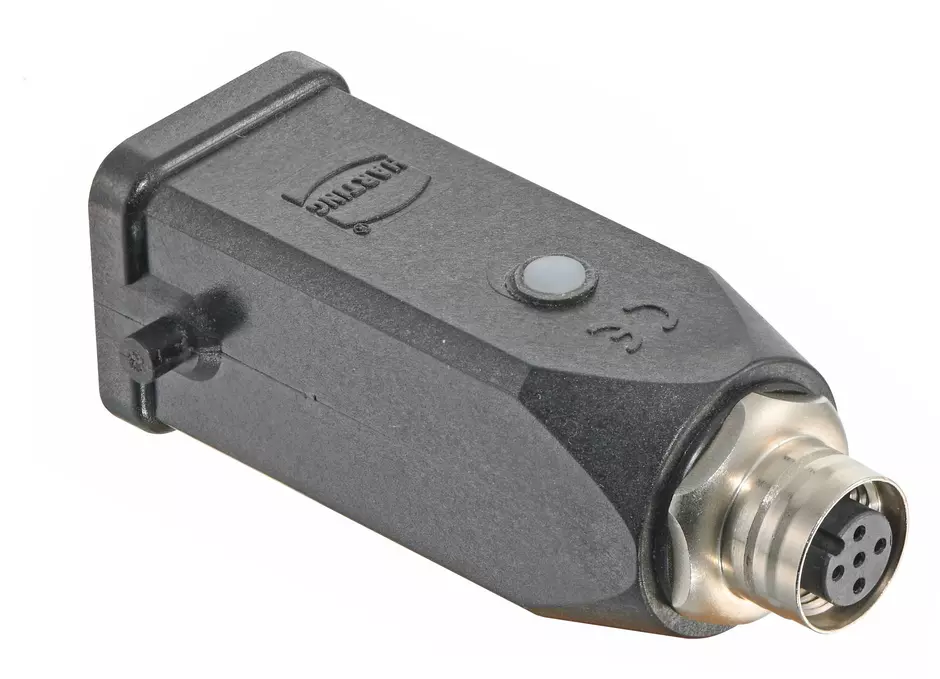

Han Protect 3A HTE M12 4/1 Fused

Article No.: 10 81 007 1141

New

Image is for illustration purposes only. Please refer to product description.

New

Connector sets

Article No.: 10 81 007 1141

to see prices and availability.

to see prices and availability.

Connector sets

Crimp termination

Male

Rated current: ‌4 A

Contacts: 4 1 Contact fused

Hood

Size: 3 A

Single locking lever

Top entry

1x M12

Material: Polycarbonate (PC)

Degree of protection: IP54

Identification

Version

Technical characteristics

Rated current	‌ 4 A
Rated voltage	24 V
Limiting temperature	-25 ... +70 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP54

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material (hood/housing)	Polycarbonate (PC)
Colour (hood/housing)	RAL 9005 (jet black)
Material (seal)	NBR
Material (seal)	Polyethylen (PE)
Material (locking)	Polycarbonate (PC)
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	5dbb3851-b94e-4e88-97a1-571845975242
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Commercial data

Packaging size	1
Net weight	57.178 g
Country of origin	Mexico
European customs tariff number	85366990
GTIN	5713140435018
eCl@ss	27440113 Rectangular connectors (set)
UNSPSC 24.0	39121408
