Han Q 5/0 HighTemp-F-c

Article No.: 09 12 805 3104

Configurable

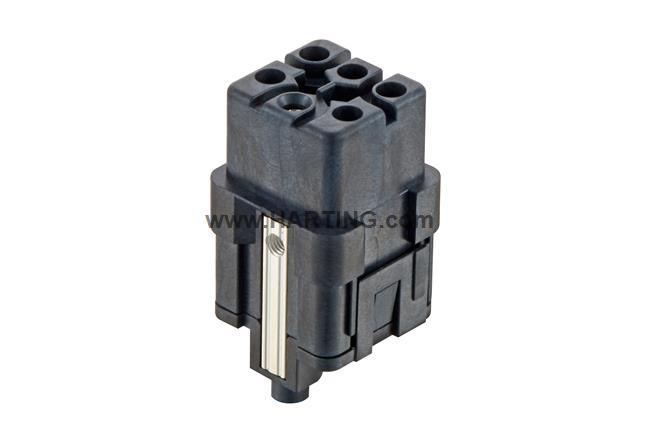

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 12 805 3104

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Female

Liquid crystal polymer (LCP)

Black

Rated current: ‌16 A

Size: 3 A

Contacts: 5

Conductor cross-section: 0.5 ... 2.5 mm²

Identification

Version

Termination method	Crimp termination
Gender	Female
Size	3 A
Number of contacts	5
PE contact	Yes
Details	Please order crimp contacts separately.
Details	Coding pins on request

Technical characteristics

Conductor cross-section	0.5 ... 2.5 mm²
Rated current	‌ 16 A
Rated voltage conductor-earth	230 V
Rated voltage conductor-conductor	400 V
Rated impulse voltage	4 kV
Pollution degree	3
Insulation resistance	>10¹⁰ Ω
Limiting temperature	-40 ... +200 °C With Han® High Temp components
Mating cycles	≥ 500

Material properties

Material (insert)	Liquid crystal polymer (LCP)
Colour (insert)	Black
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	10
Net weight	15 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140186606
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
