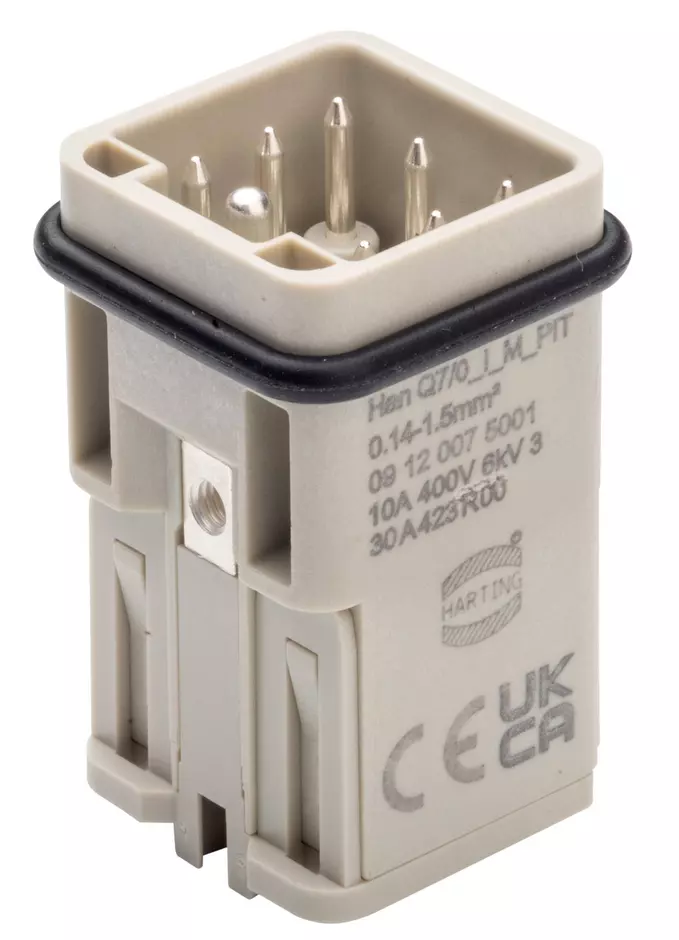

Han Q7/0_I_M_PIT_0.14-1.5mm²

Article No.: 09 12 007 5001

New

Image is for illustration purposes only. Please refer to product description.

New

Inserts

Article No.: 09 12 007 5001

to see prices and availability.

to see prices and availability.

Inserts

Push-In

Male

Polycarbonate (PC)

RAL 7032 (pebble grey)

Rated current: ‌10 A

Size: 3 A

Contacts: 7

Conductor cross-section: 0.14 ... 1.5 mm²

Copper alloy

Silver plated

Identification

Version

Technical characteristics

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Specifications	IEC 60664-1
Specifications	IEC 61984

Commercial data

Packaging size	10
Net weight	17.4 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140451032
eCl@ss	27440205 Contact insert for industrial connectors
UNSPSC 24.0	39121522
