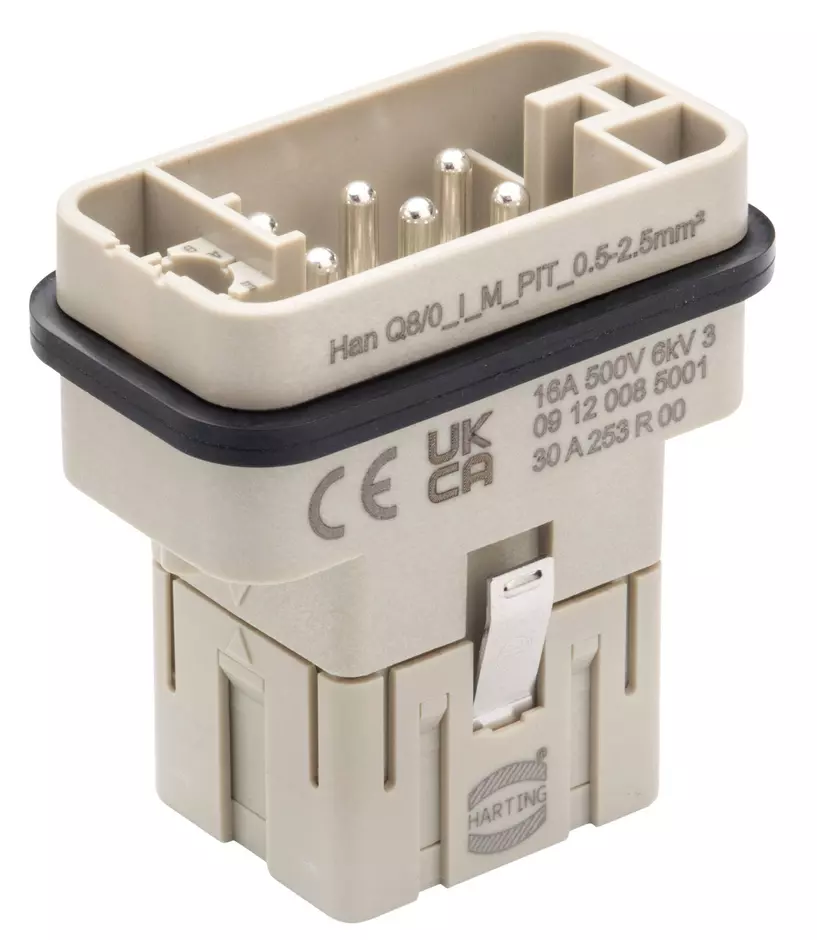

Han Q8/0_I_M_PIT_0.5-2.5mm²

Article No.: 09 12 008 5001

New

Image is for illustration purposes only. Please refer to product description.

New

Inserts

Article No.: 09 12 008 5001

to see prices and availability.

to see prices and availability.

Inserts

Push-In

Male

Polycarbonate (PC)

RAL 7032 (pebble grey)

Rated current: ‌16 A

Size: Han-Compact®

Contacts: 8

Conductor cross-section: 0.5 ... 2.5 mm²

Identification

Version

Technical characteristics

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Specifications	IEC 60664-1
Specifications	IEC 61984

Commercial data

Packaging size	10
Net weight	34.68 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140935020
eCl@ss	27440205 Contact insert for industrial connectors
UNSPSC 24.0	39121522
