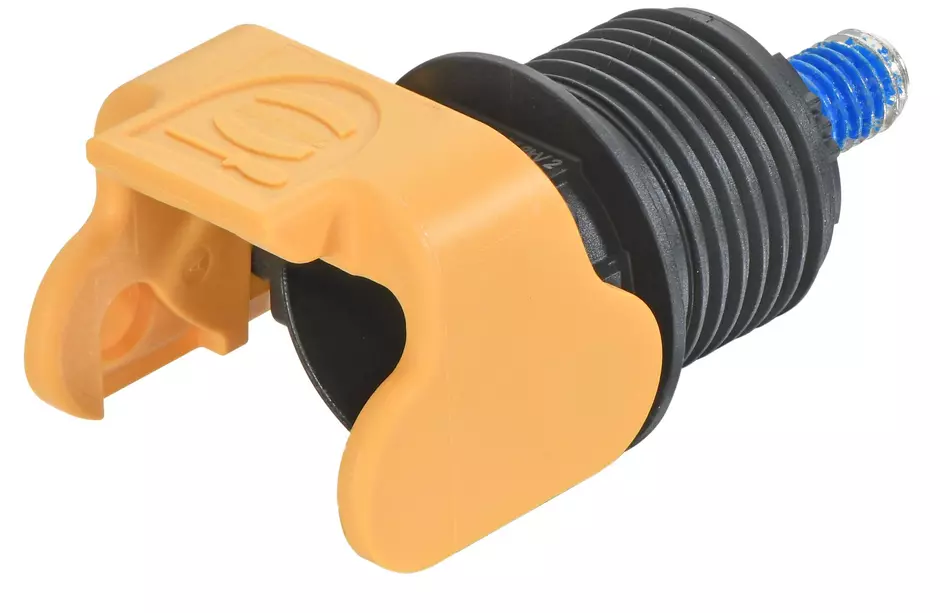

Han® S 120 HSI w. MC M6 black SLV UP

Article No.: 09 93 001 1125

Image is for illustration purposes only. Please refer to product description.

Screw mounted housing

Article No.: 09 93 001 1125

to see prices and availability.

to see prices and availability.

Screw mounted housing

incl. male contact with M6 bolt termination, With Tuflok® protection, With unlocking protection

Single locking lever

Material (hood/housing): Polyamide (PA)

RAL 9005 (jet black)

Identification

Category	Hoods / Housings
Series	Han^® S
Identification	Han^® S 120
Type of hood/housing	Screw mounted housing
Description of hood/housing	incl. male contact with M6 bolt termination
	With Tuflok^® protection
	With unlocking protection

Version

Technical characteristics

Rated current	‌ 120 A
Rated voltage	1,500 V
Rated impulse voltage	8 kV
Pollution degree	2
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 0.3 mΩ
Tightening torque	‌4 Nm
Wrench size	9
Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Number of relockings	≥ 500
Degree of protection acc. to IEC 60529	IP40 mated condition
Degree of protection acc. to IEC 60529	IP20 unmated condition (1500 V DC; 1000 V AC)

Material properties

Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material (hood/housing)	Polyamide (PA)
Colour (hood/housing)	RAL 9005 (jet black)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	1
Net weight	14.72 g
Country of origin	China
European customs tariff number	85366990
GTIN	5713140183469
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
