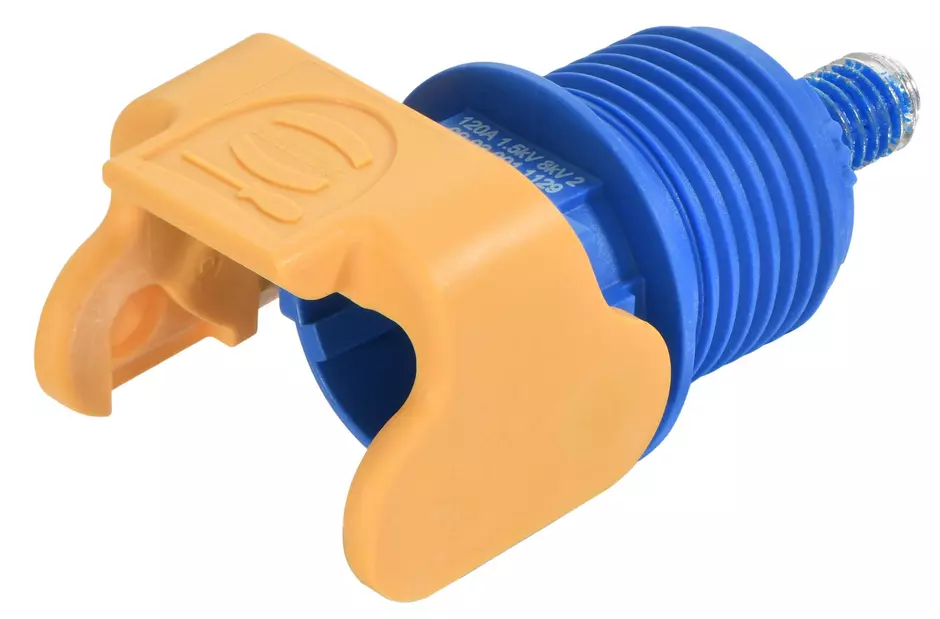

Han® S 120 HSI w. MC M6-blue SLV UP

Article No.: 09 93 001 1129

New

Image is for illustration purposes only. Please refer to product description.

New

Screw mounted housing

Article No.: 09 93 001 1129

to see prices and availability.

to see prices and availability.

Screw mounted housing

incl. male contact with M6 bolt termination, With Tuflok® protection, With unlocking protection

Single locking lever

Material (hood/housing): Polyamide (PA)

RAL 5015 (sky blue)

Identification

Category	Hoods / Housings
Identification	Han^® S 120
Series	Han® S
Type of hood/housing	Screw mounted housing
Description of hood/housing	incl. male contact with M6 bolt termination
	With Tuflok^® protection
	With unlocking protection

Version

Technical characteristics

Rated current	120 A
Rated voltage	1500 V
Rated impulse voltage	8 kV
Pollution degree	2
Insulation resistance	>10⁸ Ω
Contact resistance	0.3 mΩ
Limiting temperature	[-40] ... [+125 °C]
Note on the limiting temperature	For use as a connector according to IEC 61984.
Tightening torque	‌4 Nm
Wrench size	9
Number of relockings	500
Degree of protection acc. to IEC 60529	IP40 mated condition
Degree of protection acc. to IEC 60529	IP20 unmated condition (1500 V DC; 1000 V AC)

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Not contained
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material (hood/housing)	Polyamide (PA)
Colour (hood/housing)	RAL 5015 (sky blue)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	21 g
Country of origin	China
GTIN	5713140183483
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
