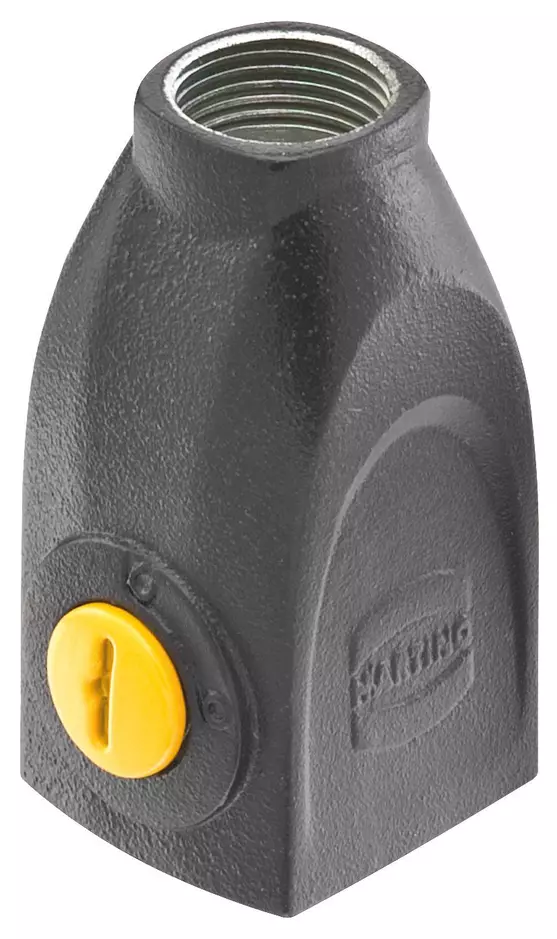

Han-Yellock 10 hood M20 top entry

Article No.: 11 20 003 1400

Image is for illustration purposes only. Please refer to product description.

Hood

Article No.: 11 20 003 1400

to see prices and availability.

to see prices and availability.

Hood

Size: Han-Yellock® 10

Push button

Polyamide (PA), Stainless steel

Top entry

1x M20

Material (hood/housing): Zinc die-cast

Powder-coated

RAL 7021 (black grey)

Identification

Version

Locking type	Push button
Size	Han-Yellock^® 10
Version	Top entry
Number of cable entries	1
Cable entry	1x M20
Field of application	Hoods/housings for industrial applications

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Un-/locking temperature	-10 ... +85 °C
Mating cycles	500
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 7021 (black grey)
Material (locking)	Polyamide (PA)
Material (locking)	Stainless steel
Colour (locking)	Melon yellow
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	179.22 g
Country of origin	Romania
GTIN	5713140110649
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
