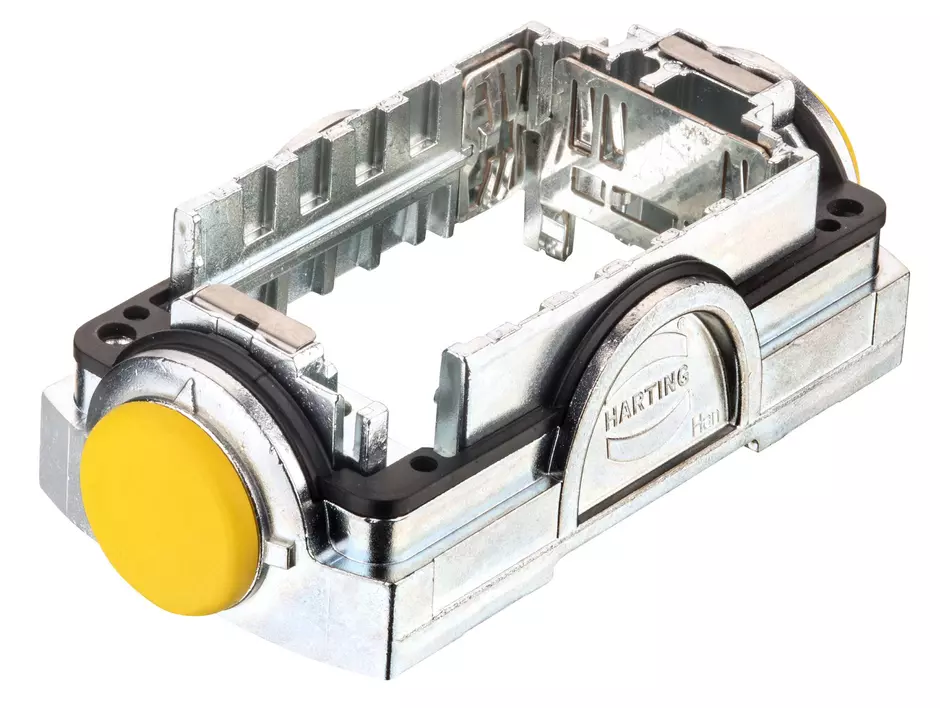

Han-Yellock 60 carrier hood EP

Article No.: 97 00 000 5212

New

Image is for illustration purposes only. Please refer to product description.

New

Carrier hood

Article No.: 97 00 000 5212

to see prices and availability.

to see prices and availability.

Carrier hood

Plain push button

Size: Han-Yellock® 60

Push button

Hydrated NBR (HNBR), Polycarbonate (PC), Stainless steel

Material (hood/housing): Zinc die-cast

Passivated

Metallic

Material (seal): NBR

Identification

Version

Locking type	Push button
Size	Han-Yellock^® 60
Field of application	Hoods/housings for industrial applications
Field of application	Special hoods and housings for high mating cycles

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Un-/locking temperature	-10 ... +85 °C
Mating cycles	≥ 10,000
Note on the mating cycles	Mating cycles with other HMC components
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Not contained
PFAS	No
Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Passivated
Colour (hood/housing)	Metallic
Material (seal)	NBR
Material (locking)	Hydrated NBR (HNBR)
	Polycarbonate (PC)
	Stainless steel
Colour (locking)	Melon yellow
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	0.221 g
Country of origin	Romania
GTIN	5713141126649
eCl@ss	27440202 Shell for industrial connectors
