Han-Yellock bulkhead housing 30

Article No.: 11 12 300 0301

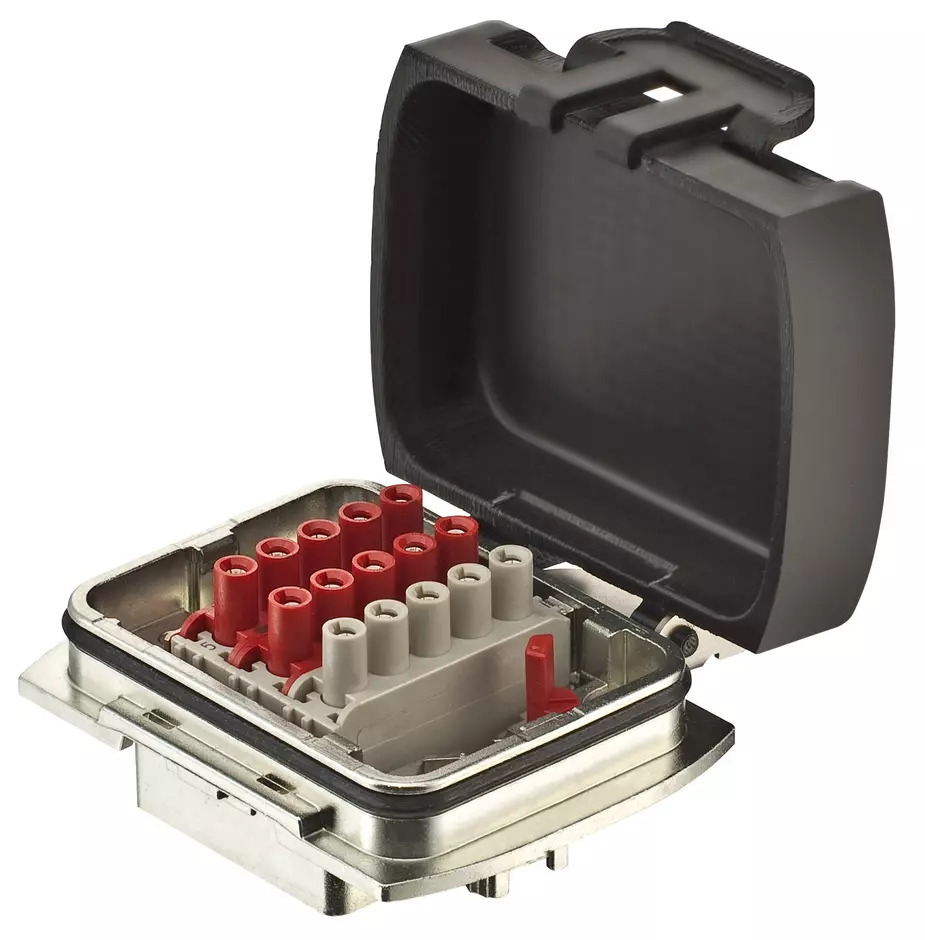

Image is for illustration purposes only. Please refer to product description.

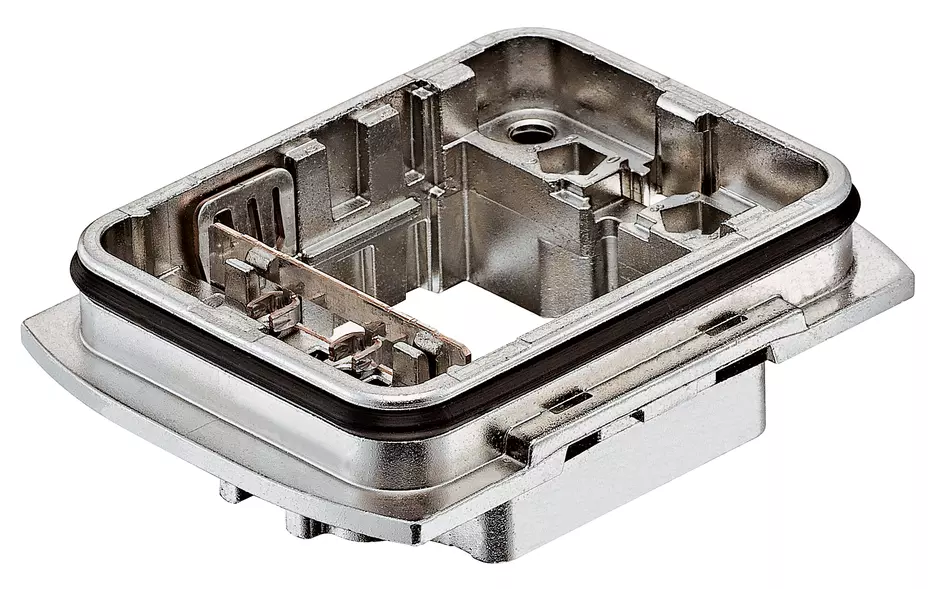

Bulkhead mounted housing

Article No.: 11 12 300 0301

to see prices and availability.

to see prices and availability.

Bulkhead mounted housing

Size: Han-Yellock® 30

Material (hood/housing): Zinc die-cast

Passivated

Metallic

Material (seal): NBR

Identification

Version

Size	Han-Yellock^® 30
Field of application	Hoods/housings for industrial applications

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Un-/locking temperature	-10 ... +85 °C
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67

Material properties

Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Passivated
Colour (hood/housing)	Metallic
Material (seal)	NBR
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Commercial data

Packaging size	1
Net weight	116.4 g
Country of origin	Romania
European customs tariff number	85389099
GTIN	5713140109865
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
