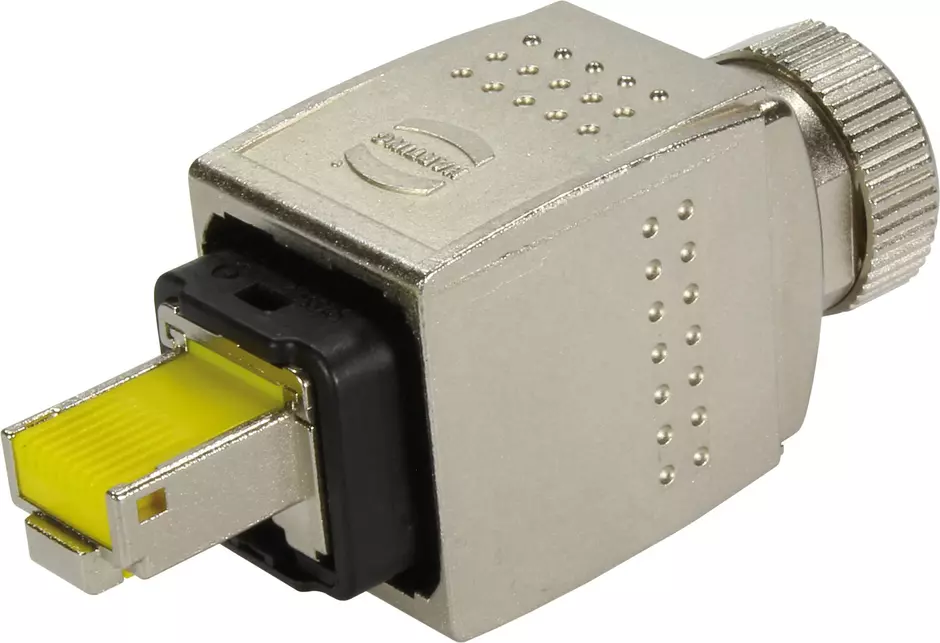

HanPP V14 preLink RJ45 plug 8p met.

Article No.: 20 82 104 0001

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 20 82 104 0001

to see prices and availability.

to see prices and availability.

Connectors

Connector AIDA compliant

preLink® IDC insulation displacement termination

Male

Contacts: 8

Material: Zinc die-cast

Nickel plated

Degree of protection: IP65, IP67

Identification

Version

Termination method	preLink^® IDC insulation displacement termination
Gender	Male
Shielding	Shielded
Number of contacts	8
Coding	RJ45
Details	When installing a PROFINET system, observe the PROFINET installation guideline.
Details	This item requires additional a termination block. Please select these under “Matching Products”.

Technical characteristics

Conductor cross-section (mm²)	0.1 ... 0.12 mm²
Conductor cross-section (mm²)	0.22 ... 0.32 mm²
Conductor cross-section (AWG)	AWG 27 ... AWG 26
Conductor cross-section (AWG)	AWG 24 ... AWG 22
Limiting temperature	[-40] ... [+85 °C]
Mating cycles	750
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Cable diameter	5 ... 9.5 mm
Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	10 Mbit/s
	100 Mbit/s
	1 Gbit/s
	2.5 Gbit/s
	5 Gbit/s
Vibration resistance	5.72 m/s² acc. to IEC 61373 Category 1 Class B
Shock resistance	5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Nickel plated

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	68 g
Country of origin	Latvia
GTIN	5713140135666
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408

Links

Whitepaper	https://www.harting.com/sites/default/files/2023-09/2023-07_WP_preLink-EN.pdf
