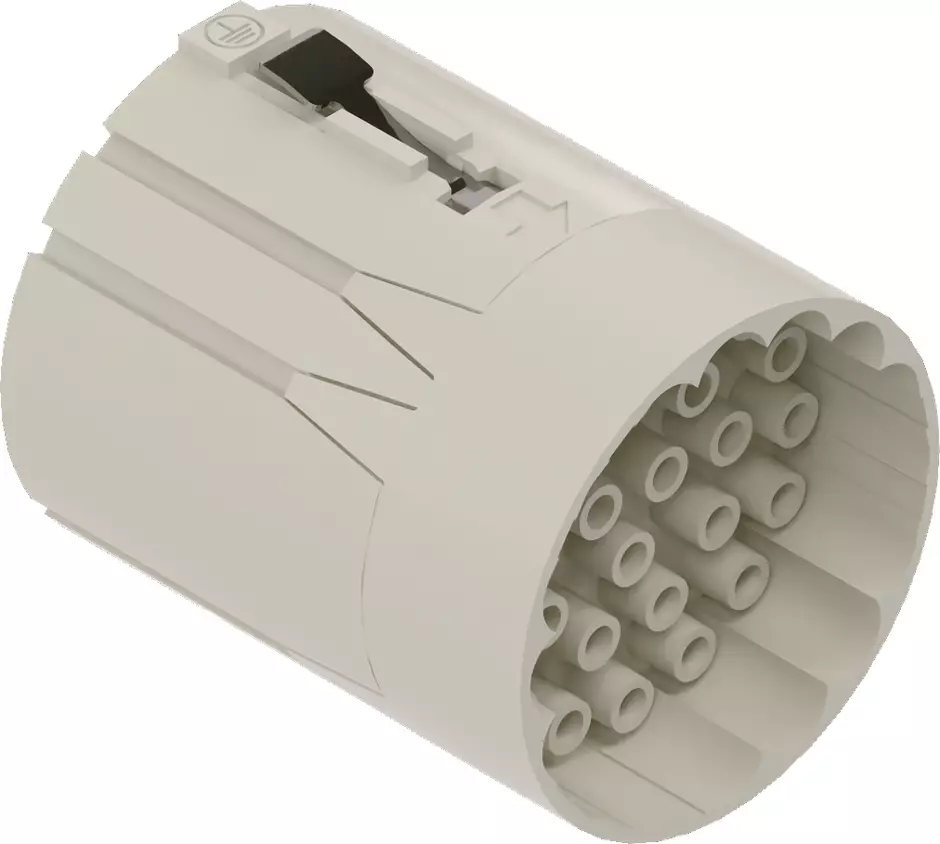

ICC20 27D-MI-CRT

Article No.: 19 59 020 2801

NewConfigurable

Image is for illustration purposes only. Please refer to product description.

NewConfigurable

Connectors

Article No.: 19 59 020 2801

to see prices and availability.

to see prices and availability.

Connectors

Crimp termination

Male

Polycarbonate (PC)

RAL 7032 (pebble grey)

Rated current: ‌10 A

Size: 20

Contacts: 28

Conductor cross-section: 0.14 ... 2.5 mm²

Identification

Version

Termination method	Crimp termination
Gender	Male
Size	20
Number of contacts	28
Number of signal contacts	27
Number of special contacts	1x PE contact
Specification of special contacts	PE contact
Details	Please order crimp contacts separately.

Technical characteristics

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	18.26 g
Country of origin	India
European customs tariff number	85389099
GTIN	5713140400535
eCl@ss	27440223 Contact insert for circular connectors
UNSPSC 24.0	39121421
