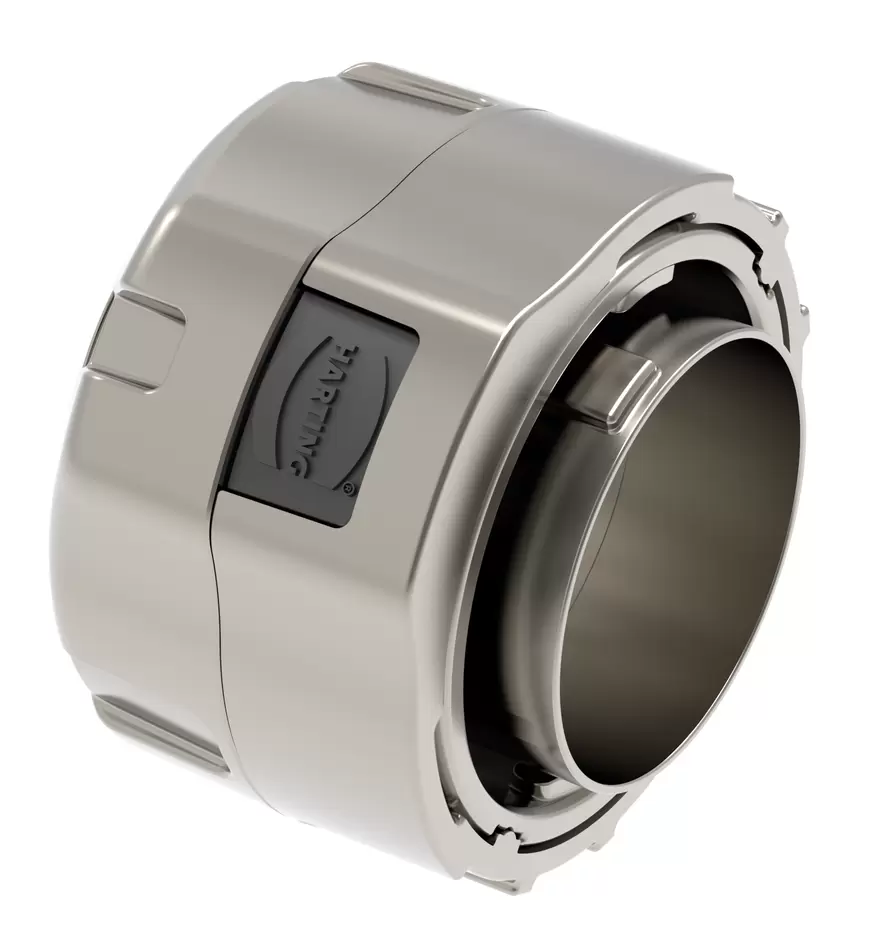

ICC20_H_PL_BLS

Article No.: 97 00 000 6330

New

Image is for illustration purposes only. Please refer to product description.

New

Cable housing

Article No.: 97 00 000 6330

to see prices and availability.

to see prices and availability.

Cable housing

Size: 20

Bayonet locking

Material (hood/housing): Zinc die-cast

Nickel plated

Material (seal): EPDM

Degree of protection: IP67, IPX9

Identification

Version

Locking type	Bayonet locking
Size	20
Details	Please order backshell separately.

Technical characteristics

Limiting temperature	-40 ... +125 °C
Number of relockings	≥ 500
Degree of protection acc. to IEC 60529	IP67
Degree of protection acc. to IEC 60529	IPX9

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
PFAS	No
Material (hood/housing)	Zinc die-cast
Surface (hood/housing)	Nickel plated
Material (seal)	EPDM
Colour (seal)	Black

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	82 g
Country of origin	India
GTIN	5713141339490
eCl@ss	27440224 Shell for circular connectors
