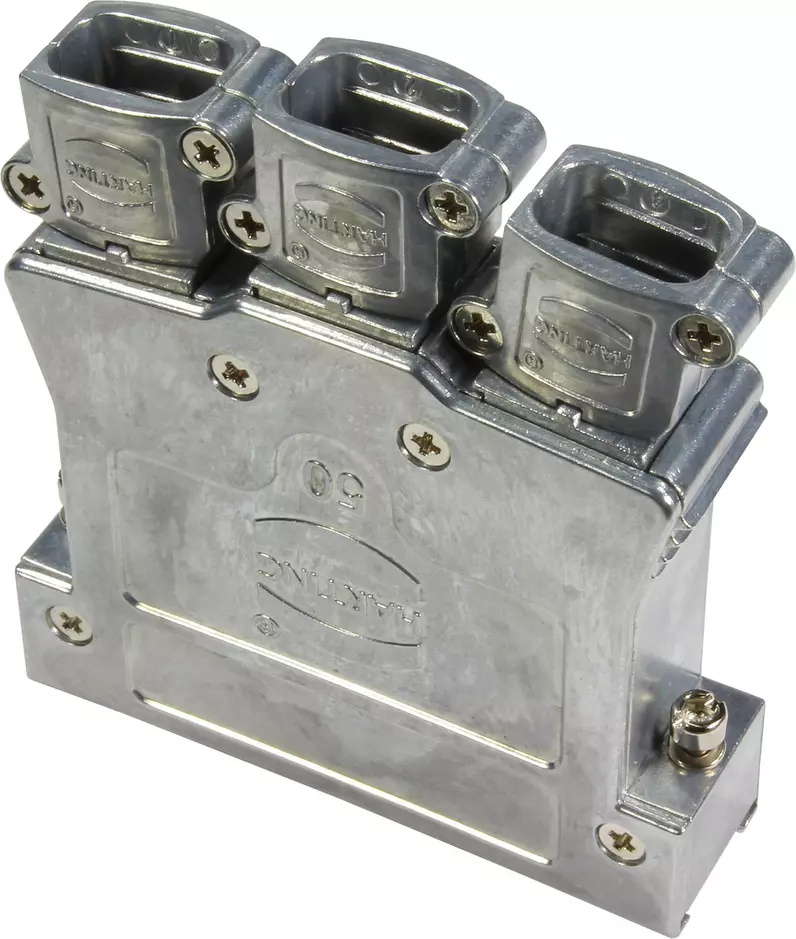

InduCom 50p 3T-entry hexscrew M3

Article No.: 61 03 001 1119

Image is for illustration purposes only. Please refer to product description.

Shell housing

Article No.: 61 03 001 1119

to see prices and availability.

to see prices and availability.

Shell housing

With internal earth

Size: D-Sub 5

Hexagonal screw with captive washer Thread M3

Top/side entry

Material (hood/housing): Zinc die-cast

Degree of protection: IP30

Identification

Version

Locking type	Hexagonal screw with captive washer Thread M3
Size	D-Sub 5
Version	Top/side entry
Number of cable entries	3
Cable entry	3x
Strain relief	An additional InduCom cable clamp or a crimp flange - ferrule combination is available dependant on the use of the cable.
ground connection	With internal grounding block
2 parts	Yes
Separable	Yes
Details	Part number includes two dummy plugs

Technical characteristics

Limiting temperature	[-55] ... [+125 °C]
Tightening torque	‌0.4 Nm ground connection
	‌0.4 Nm cover screw
	‌0.4 Nm Locking screw
Degree of protection acc. to IEC 60529	IP30

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (hood/housing)	Zinc die-cast
Material (screw)	Steel, nickel plated
Length	58 mm
Width	67.1 mm
Height	17.6 mm

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	117.1 g
Country of origin	China
GTIN	5713140157873
eCl@ss	27440213 D-Sub hood
ETIM	EC001133
UNSPSC 24.0	39121416
