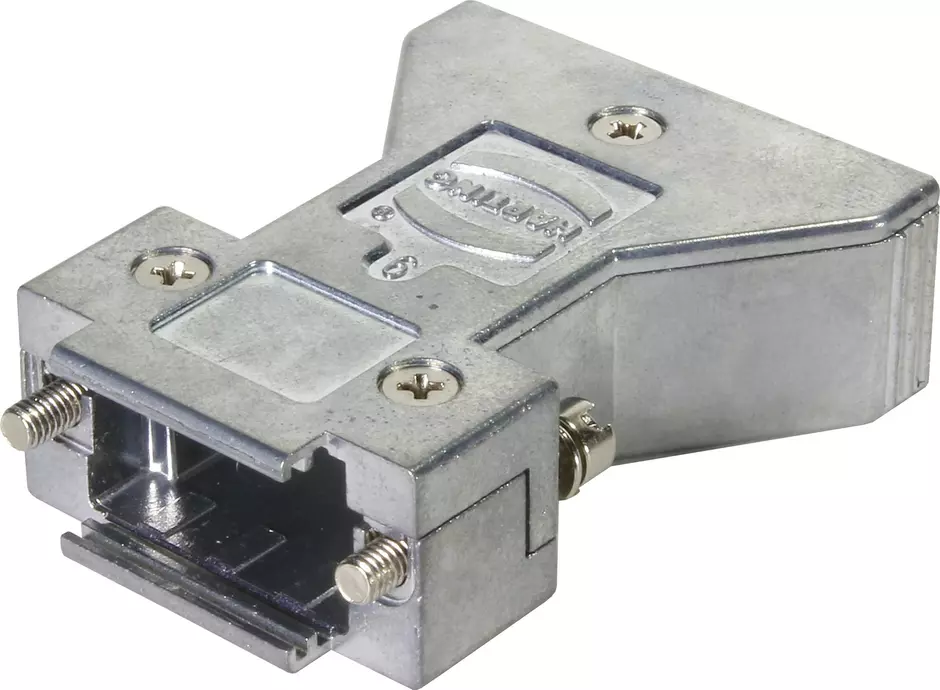

InduCom 9p 2T-entry hexscrew M3

Article No.: 61 03 001 1110

Image is for illustration purposes only. Please refer to product description.

Shell housing

Article No.: 61 03 001 1110

to see prices and availability.

to see prices and availability.

Shell housing

With internal earth

Size: D-Sub 1

Hexagonal screw with captive washer Thread M3

Top entry

Material (hood/housing): Zinc die-cast

Degree of protection: IP30

Identification

Version

Size	D-Sub 1
Version	Top entry
Number of cable entries	2
Cable entry	2x
Strain relief	An additional InduCom cable clamp or a crimp flange - ferrule combination is available dependant on the use of the cable.
Locking type	Hexagonal screw with captive washer Thread M3
ground connection	With internal grounding block
2 parts	Yes
Separable	Yes
Details	Part number includes one dummy plug

Technical characteristics

Tightening torque	0.4 Nm ground connection
	0.4 Nm cover screw
	0.4 Nm Locking screw
Limiting temperature	-55 ... +125 °C
Degree of protection acc. to IEC 60529	IP30

Material properties

Material (hood/housing)	Zinc die-cast
Material (screw)	Steel, nickel plated
Length	46.7 mm
Width	31 mm
Height	14.8 mm
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Commercial data

Packaging size	1
Net weight	50 g
Country of origin	China
European customs tariff number	85389099
GTIN	5713140222427
eCl@ss	27440213 D-Sub hood
ETIM	EC001133
UNSPSC 24.0	39121416
