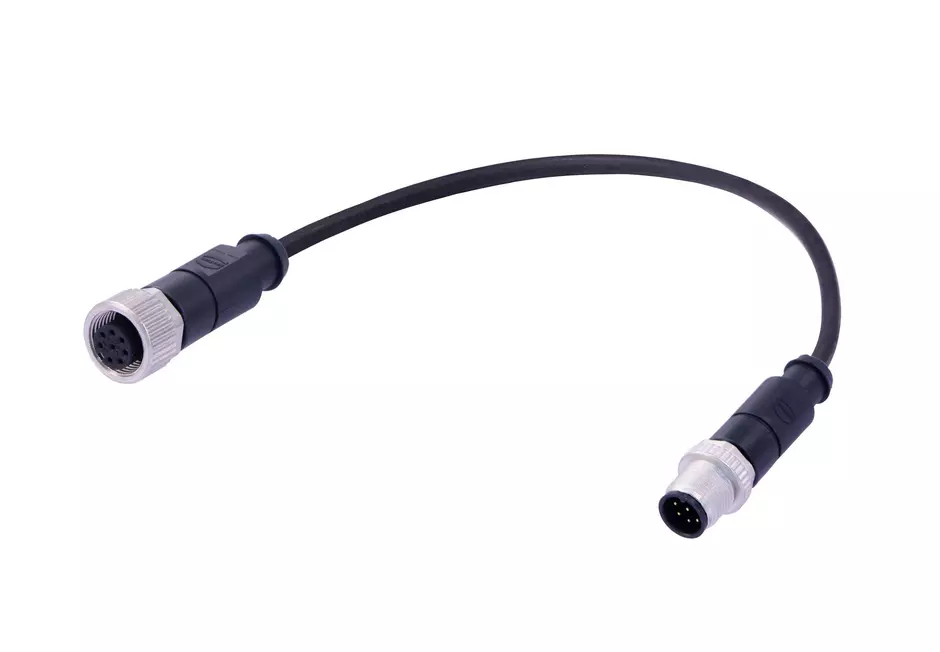

M12 A-cod 12-pole st/st m/f PUR 1.5m

Article No.: 97 00 000 5286

New

Image is for illustration purposes only. Please refer to product description.

New

Cable assemblies

Article No.: 97 00 000 5286

Cable length

to see prices and availability.

Cable length

to see prices and availability.

Cable assemblies

Pre-assembled on both sides

Copper cable (round)

Halogen-free

Cable length: 1.5 m

Parts list specification

Type of cable	LiFYY 12x0.14 mm² PVC Cable Show details
Connector 1	M12 A-cod 12p st/- m/- OM Show details
Connector 2	M12 A-cod 12p st/- f/- OM Show details

Identification

Version

Technical characteristics

Rated current	‌ 2 A
Rated voltage	30 V
Limiting temperature	-10 ... +80 °C moved
Limiting temperature	-25 ... +80 °C unmoved
Degree of protection acc. to IEC 60529	IP65 / IP67 mated condition
Cable diameter	6.1 mm
Minimum bending radius	10x Cable diameter (repeated bending)
Minimum bending radius	5x Cable diameter (singular bending)

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
PFAS	No
Material (cable)	PUR (polyurethane)
Colour (cable)	RAL 7021 (black grey)

Specifications and approvals

Commercial data

European customs tariff number	85444290
Packaging size	1
Net weight	103.333 g
Country of origin	Romania
GTIN	5713141317313
eCl@ss	27060311 Assembled sensor actuator-line
ETIM	EC001855
