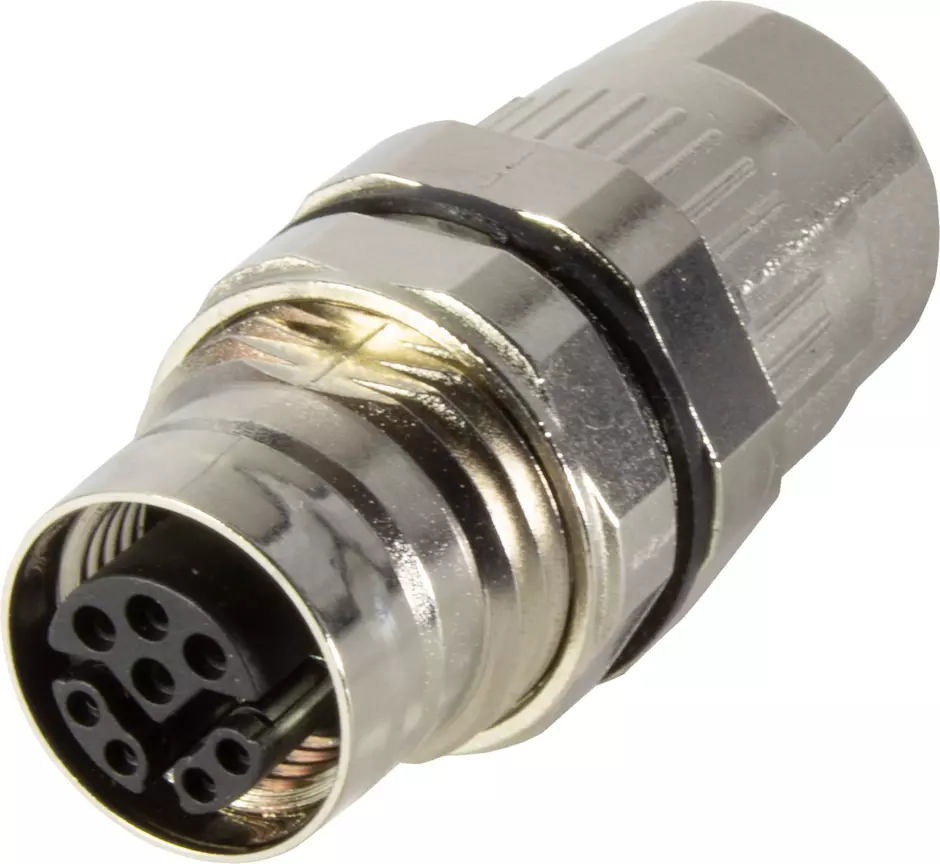

M12-SD-CC-CRIMP-8P-YCOD-F-STR-SHLD

Article No.: 21 03 861 2825

New

Image is for illustration purposes only. Please refer to product description.

New

Cable connector, Panel feed through

Article No.: 21 03 861 2825

to see prices and availability.

to see prices and availability.

Cable connector, Panel feed through

for rear mounting

Female

Y-coding

Crimp termination

Polyamide (PA)

Contacts: 8

Rated current: ‌6 A

Zinc die-cast

Screw locking, PushPull

Degree of protection: IP65 / IP67 mated condition

Identification

Version

Termination method	Crimp termination
Gender	Female
Shielding	Shielded
Number of contacts	8
Number of data contacts	4
Number of power contacts	4
Coding	Y-coding
Locking type	Screw locking
Locking type	PushPull
Details	Please order crimp contacts separately.
Details	For Fast Ethernet applications only

Technical characteristics

Rated current	‌ 6 A
Rated voltage	50 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Rated current (data)	0.5 A
Overvoltage category	III
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 10 mΩ
Limiting temperature	-40 ... +85 °C
Mating cycles	≥ 500
Degree of protection acc. to IEC 60529	IP65 / IP67 mated condition
Cable diameter	5.7 ... 8.8 mm
Isolation group	I (600 ≤ CTI)

Material properties

Material (insert)	Polyamide (PA)
Material (hood/housing)	Zinc die-cast
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

Specifications	IEC 61076-2-113
PROFINET	Yes

Commercial data

Packaging size	1
Net weight	54.75 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140227415
eCl@ss	27440116 Circular connector (for field assembly)
ETIM	EC002635
UNSPSC 24.0	39121413
