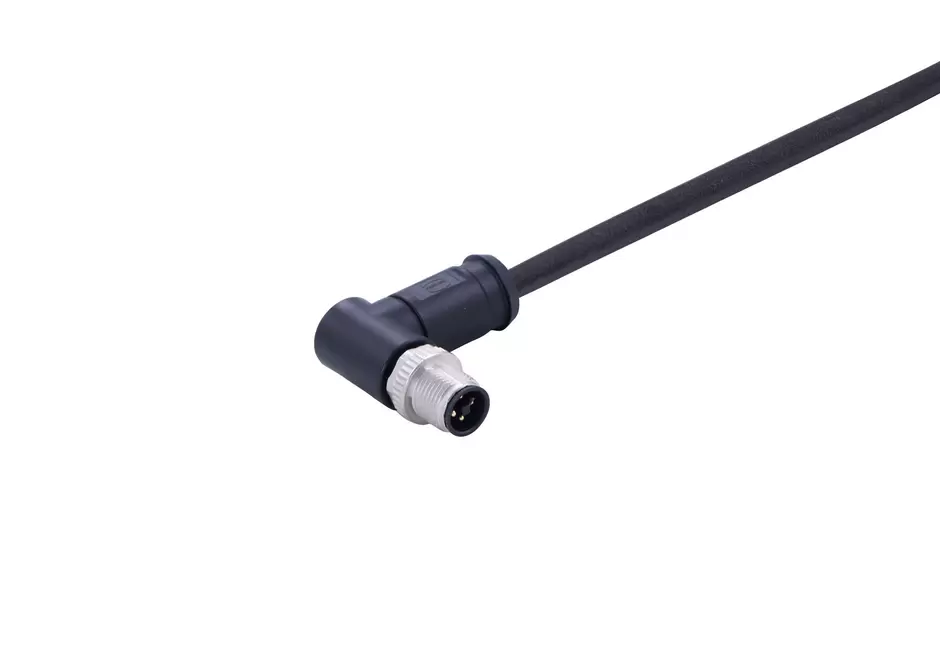

M12 T-cod 4-pole an/- m/- PUR 1.0m

Article No.: 97 00 000 6195

New

Image is for illustration purposes only. Please refer to product description.

New

Cable assemblies

Article No.: 97 00 000 6195

Cable length

to see prices and availability.

Cable length

to see prices and availability.

Cable assemblies

Pre-assembled on one side

Copper cable (round)

Cable length: 1 m

Parts list specification

Type of cable	LI9YH11YH 4x1,5mm² PUR black Show details
Connector 1	M12 Power T-cod 4-pole an/- m/- 0° scr Show details

Identification

Version

Technical characteristics

Conductor cross-section (mm²)	1.5 mm²
Conductor cross-section (AWG)	AWG 16
Wire outer diameter	‌ 7.2 mm
Rated voltage	‌ 63 V DC
Rated current	‌ 12 A
Rated impulse voltage	2 kV
Pollution degree	3
Contact resistance	≤ 0.3 mΩ
Limiting temperature	-50 ... +80 °C unmoved
	-25 ... +80 °C moved
	-5 ... +60 °C drag chain
Tightening torque	‌0.6 Nm
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP65 / IP67 mated condition
Overvoltage category	III

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
PFAS	No
Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material (hood/housing)	Zinc die-cast
Colour (hood/housing)	Black
Material (cable)	PUR (polyurethane)
Colour (overmoulding)	RAL 9005 (jet black)
Colour (cable)	Black
Material (overmoulding)	Polyamide (PA)

Specifications and approvals

Commercial data

European customs tariff number	85444290
Packaging size	1
Net weight	117.4 g
Country of origin	Romania
GTIN	5713141336987
eCl@ss	27060311 Assembled sensor actuator-line
