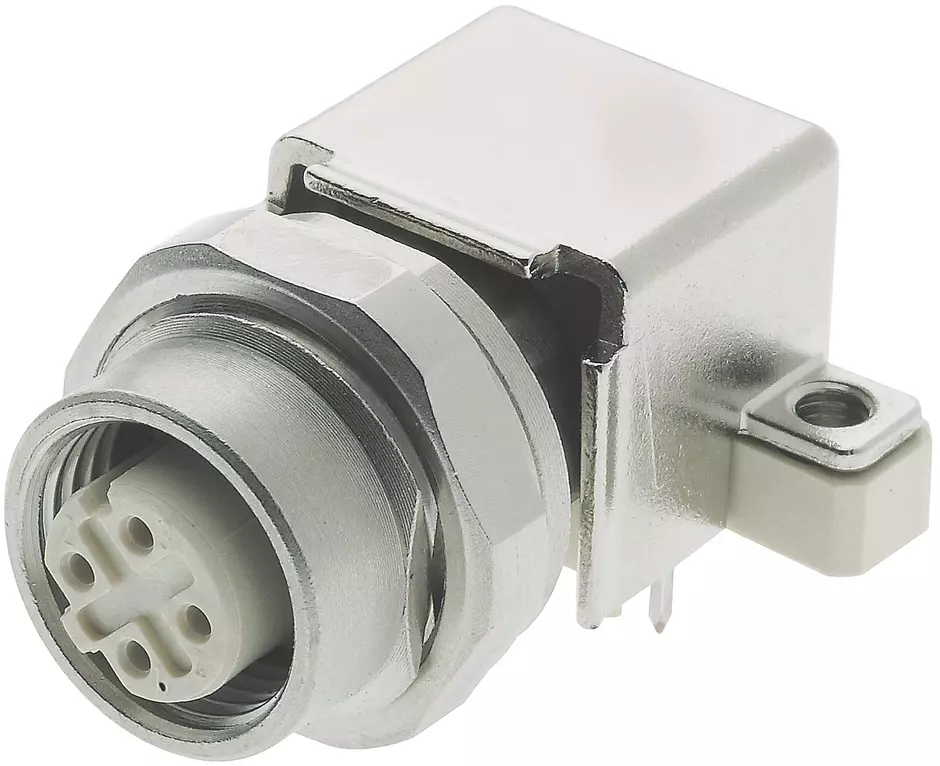

M12 panel feed through PCB angled D-kod.

Article No.: 21 03 381 4412

Image is for illustration purposes only. Please refer to product description.

PCB adapter

Article No.: 21 03 381 4412

to see prices and availability.

to see prices and availability.

PCB adapter

Angled, for rear mounting

Reflow soldering termination (THR)

Rated current: ‌4 A

Contacts: 4

Copper alloy

Au over Ni Mating side

Coding: D-coding

Liquid crystal polymer (LCP)

Identification

Version

Termination method	Reflow soldering termination (THR)
Gender	Female
Shielding	Shielded
Number of contacts	4
Coding	D-coding
Locking type	Screw locking
Details	Coding bottom left = Cable entry direction on the angled connector: to the right

Technical characteristics

Rated current	‌ 4 A
Rated voltage	50 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Transmission characteristics	Cat. 5 Class D up to 100 MHz
Overvoltage category	III
Data rate	‌ 10 Mbit/s
Data rate	‌ 100 Mbit/s
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 10 mΩ
Tightening torque	2 Nm Lock nut
Limiting temperature	-40 ... +85 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP20
Isolation group	I (600 ≤ CTI)

Material properties

Material (insert)	Liquid crystal polymer (LCP)
Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni Mating side
Material (hood/housing)	Zinc die-cast
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R26

Specifications and approvals

Commercial data

Packaging size	10
Net weight	20 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140138322
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
