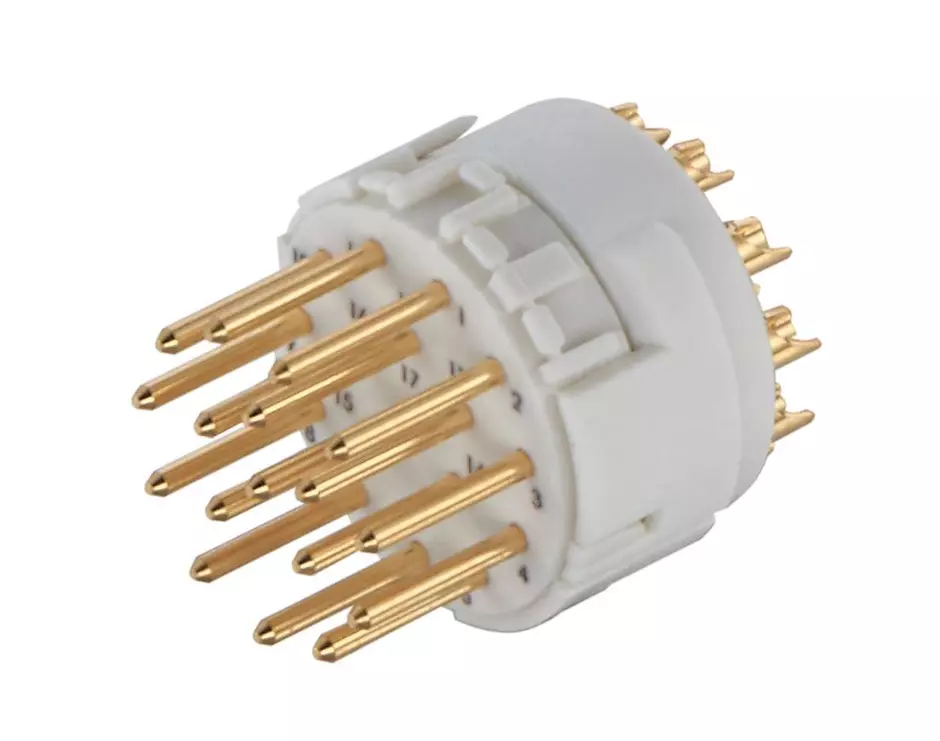

M23 17 Male -L

Article No.: 09 15 117 2602

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 15 117 2602

to see prices and availability.

to see prices and availability.

Inserts

Solder termination

Male

Polyamide (PA)

White

Rated current: ‌8 A

Contacts: 17

Conductor cross-section: 1 mm² max.

Copper alloy

Gold plated

Identification

Version

Technical characteristics

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	White
Material (contacts)	Copper alloy
Surface (contacts)	Gold plated
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	052d6da0-30ef-44e8-bbe4-e75780521d22
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E235076

Commercial data

Packaging size	5
Net weight	6.6 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140187221
eCl@ss	27440223 Contact insert for circular connectors
ETIM	EC003557
UNSPSC 24.0	39121421
