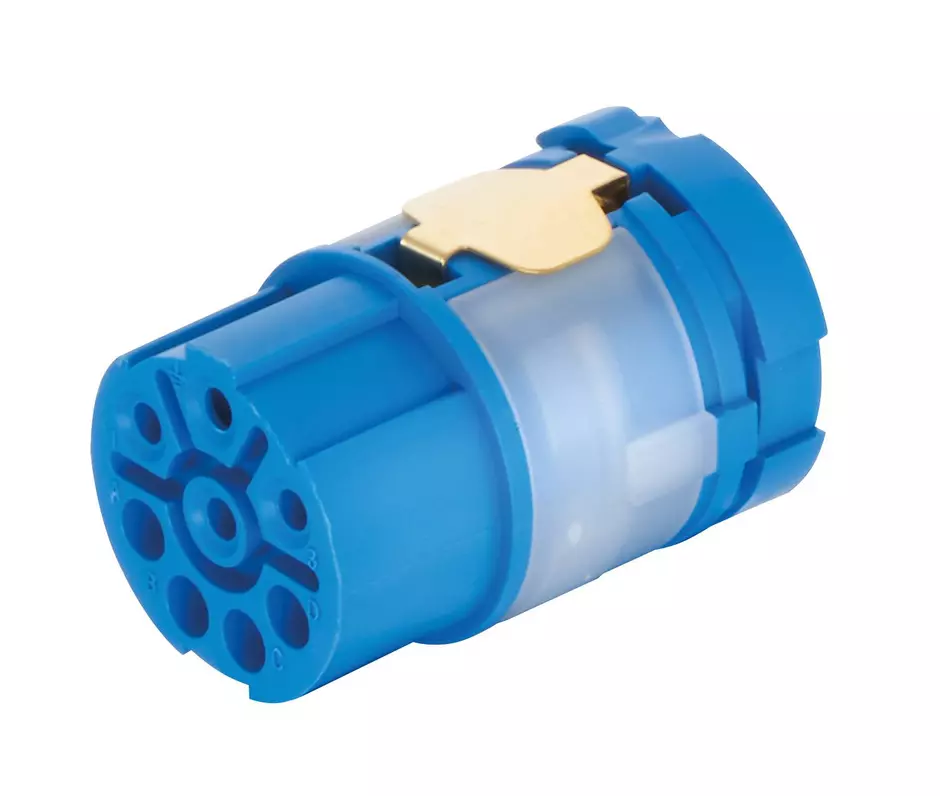

M23 P 4+3+PE Female -C

Article No.: 09 15 608 3101

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 15 608 3101

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Female

Polyamide (PA)

Blue

Contacts: 8

Conductor cross-section: 0.14 ... 4 mm²

Identification

Version

Termination method	Crimp termination
Gender	Female
Number of contacts	8
Number of signal contacts	4
Number of power contacts	3
Number of special contacts	1x PE contact
Specification of special contacts	PE contact
Details	Please order crimp contacts separately.
	4x 2 mm
	4x 1 mm

Technical characteristics

Conductor cross-section	0.14 ... 4 mm²
Rated current (signal)	8 A
Rated voltage (signal)	300 V
Rated impulse voltage (signal)	2.5 kV
Pollution degree (signal)	3
Rated current (power)	28 A
Rated voltage (power)	600 V
Rated impulse voltage (power)	4 kV
Pollution degree (power)	3
Insulation resistance	>10¹³ Ω
Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 500
Test voltage Ur.m.s.	4 kV

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	Blue
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R26

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E235076

Commercial data

Packaging size	5
Net weight	9.4 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140187399
eCl@ss	27440223 Contact insert for circular connectors
ETIM	EC003557
UNSPSC 24.0	39121421
