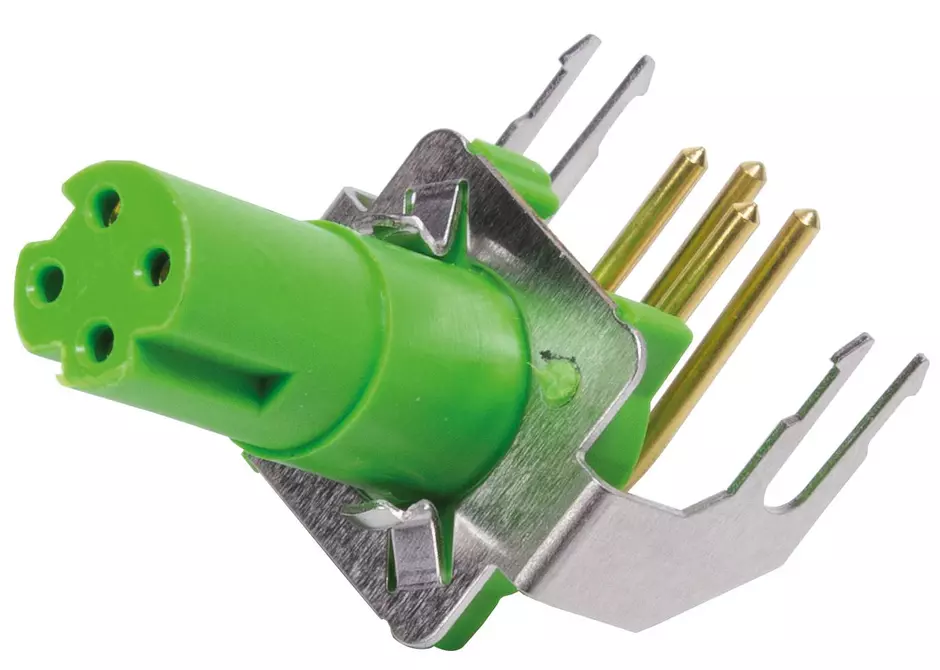

M8-PCB-THT-2PC-4P-DCOD-F-ANG-SHLD

Article No.: 21 42 010 0003 401

Image is for illustration purposes only. Please refer to product description.

PCB connector

Article No.: 21 42 010 0003 401

to see prices and availability.

to see prices and availability.

PCB connector

Angled

Wave soldering termination

Rated current: ‌4 A

Contacts: 4

Copper alloy

Au over Ni Mating side

Coding: D-coding

Identification

Version

Technical characteristics

Rated current	‌ 4 A
Rated voltage	60 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	‌ 10 Mbit/s
Data rate	‌ 100 Mbit/s
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 10 mΩ
Limiting temperature	-40 ... +85 °C
Mating cycles	≥ 100

Material properties

Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni Mating side
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R26

Specifications and approvals

Specifications	IEC 61076-2-114

Commercial data

Packaging size	1
Net weight	3 g
Country of origin	Czechia
European customs tariff number	85366990
GTIN	5713140224964
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
