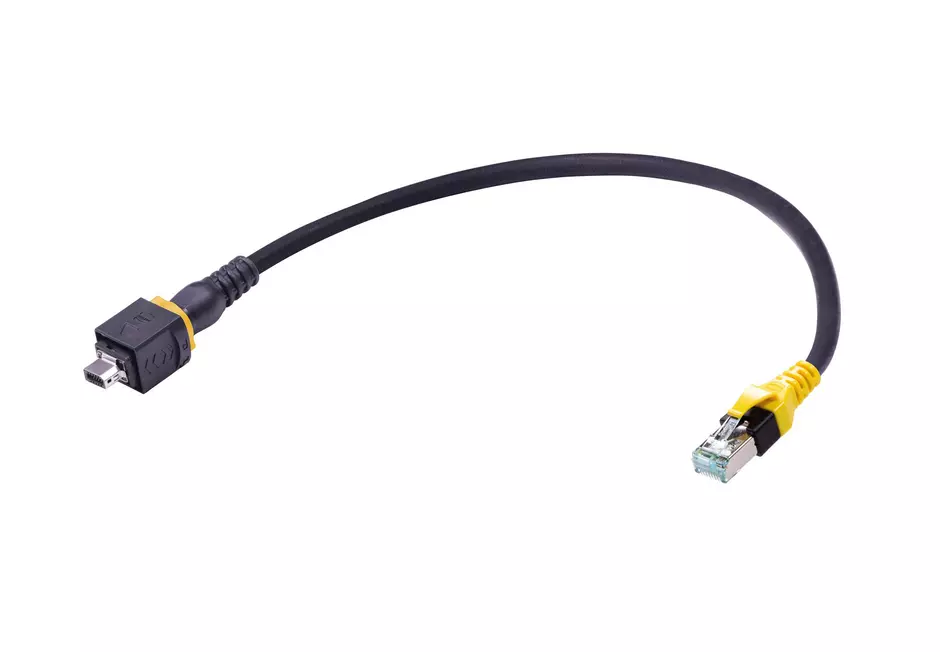

MPP ix TpA -RJ45 IP20 Cat6A PVC out 0,2m

Article No.: 33 48 344 7806 002

New

Image is for illustration purposes only. Please refer to product description.

New

Cable assemblies

Article No.: 33 48 344 7806 002

Cable length

to see prices and availability.

Cable length

to see prices and availability.

Cable assemblies

Pre-assembled on both sides

Copper cable (round)

Cable length: 0.2 m

Parts list specification

Type of cable	HARTING outd. Cat6A 4x2xAWG26/7 PVC bk Show details
Connector 1	HARTING MPP ix Type A overmolded Show details
Connector 2	DualBoot RJ45 IP20Cat.6A8poloverm yellow Show details

Identification

Version

Cable length	0.2 m
Number of cores	8
Core structure	4x 2x AWG 26/7
Termination method	IDC insulation displacement termination
Termination method	Piercing termination

Technical characteristics

Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s
Limiting temperature	-40 ... +80 °C unmoved
	-10 ... +70 °C moved
	-5 ... +70 °C During laying
Cable diameter	6.6 mm ± 0.3 mm

Material properties

Material (cable)	PVC
Colour (cable)	Black
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Specifications	UN/ECE-R 118
	UL 2556 Sec. 9.1 (FT2 Horizontal Flame Test)
	UL 1581 Sec. 1100 (FT2 Horizontal Flame Test)
	UL 1581 Sec. 1061 (CFT Cable Flame Test)
	IEC 60332-2-2 Flame retardancy

Commercial data

Packaging size	1
Net weight	27.15 g
Country of origin	Latvia
European customs tariff number	85444290
GTIN	5713140796591
eCl@ss	27060390 Ready-made data cable (unspecified)
UNSPSC 24.0	26121600
