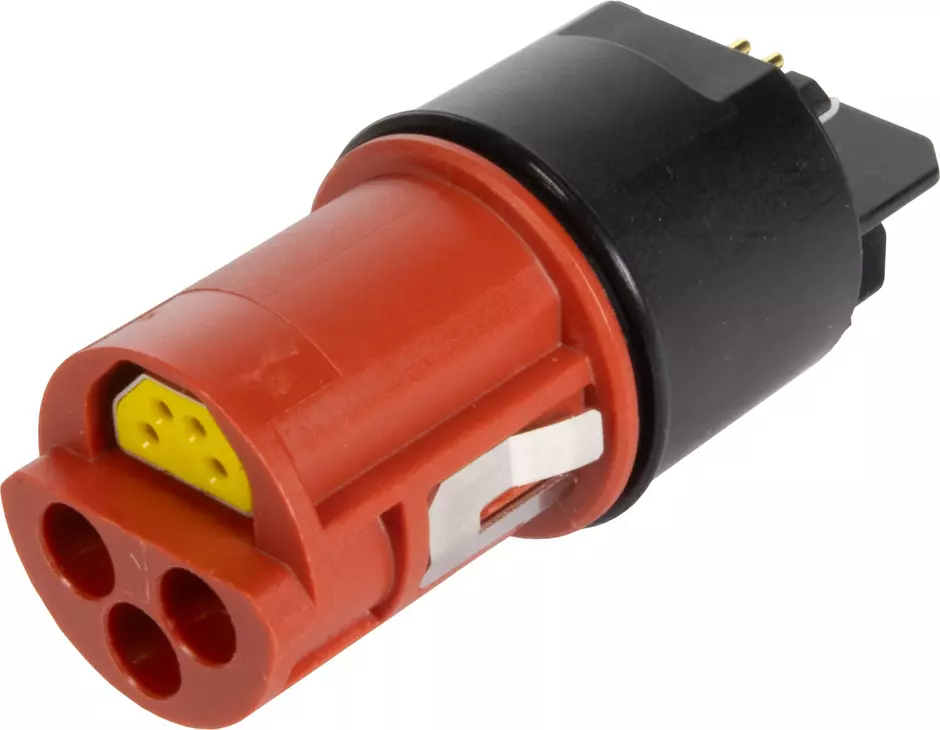

PCB-adapter w 2P male + PE + 4D female

Article No.: 21 96 339 1700

Image is for illustration purposes only. Please refer to product description.

Inserts

Article No.: 21 96 339 1700

to see prices and availability.

to see prices and availability.

Inserts

Wave soldering termination, Solder termination

Male, Female

Polyamide (PA GF)

Size: B17

Contacts: 7

Copper alloy

Au over Ni

Identification

Category	Inserts
Identification	Hybrid
Element	PCB connector
Specification	Application B according to future IEC 61076-2-118 Type B1702012
Series	Circular connectors B17
Features	Power: Male contacts with solder termination
Features	Data: Female contacts with conductors

Version

Termination method	Wave soldering termination
Termination method	Solder termination
Gender	Male
Gender	Female
Size	B17
Shielding	Shielded
Number of contacts	7
Number of special contacts	1x PE contact
Number of power contacts	2
Number of data contacts	4
Specification of special contacts	PE contact
Details	Connection / disconnection under load and / or voltage not permitted.
	Connector shall not be live when disconnected.
	Installation by skilled persons only.

Technical characteristics

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polyamide (PA GF)
Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Country of origin	Romania
eCl@ss	27440223 Contact insert for circular connectors
UNSPSC 24.0	39121421
