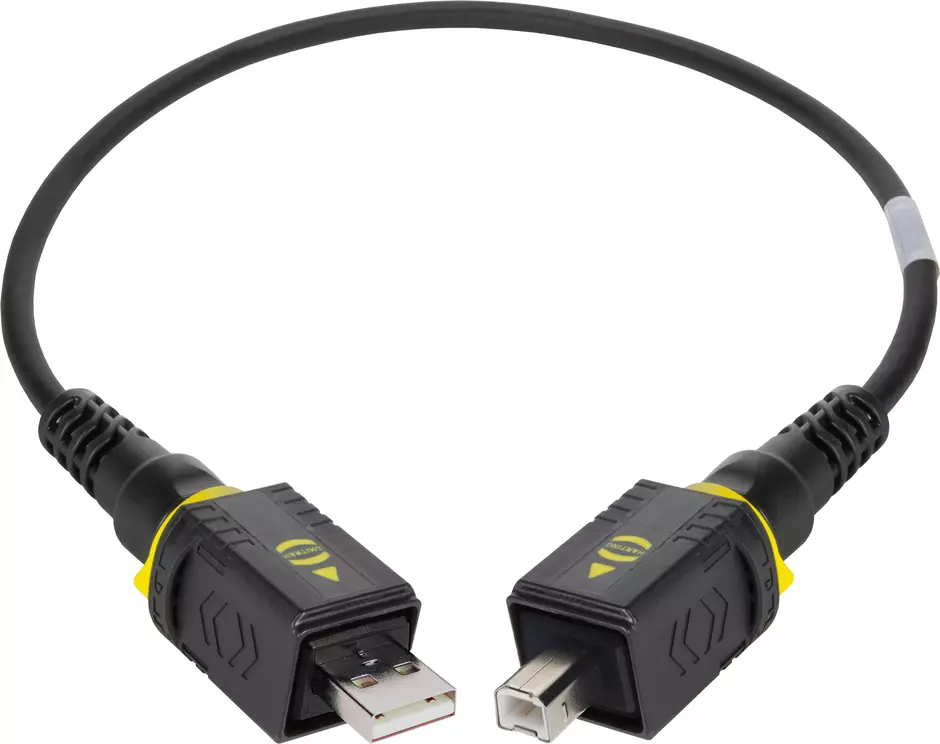

PP-V4-CA-USB2A/USB2B-PP/PP-P-P-STR-0.5

Article No.: 09 45 445 4900

Image is for illustration purposes only. Please refer to product description.

Cable assemblies

Article No.: 09 45 445 4900

Cable length

to see prices and availability.

Cable length

to see prices and availability.

Cable assemblies

Pre-assembled on both sides

Copper cable (round)

Cable length: 0.5 m

Identification

Version

Technical characteristics

Rated current	‌ 1.5 A
Rated voltage	‌ 30 V DC
Data rate	‌ 480 Mbit/s
Insulation resistance	> 1.6 x 10⁶ Ω
Contact resistance	≤ 30 mΩ
Limiting temperature	-40 ... +85 °C
Insertion force	≤ 35 N
Withdrawal force	≥ 15 N
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Cable diameter	4.9 mm
Test voltage Ur.m.s.	0.5 kV (contact-contact)
Test voltage Ur.m.s.	0.5 kV (contact-ground)
Impedance	‌90 Ω ±15 %

Material properties

Material (insert)	Liquid crystal polymer (LCP)
Material (contacts)	Copper alloy
Surface (contacts)	Sn over Ni Termination side
Surface (contacts)	Au over Ni Mating side
Material (cable)	PVC
Colour (cable)	Black
Material (overmoulding)	Polyamide (PA)
Colour (overmoulding)	Black
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Specifications	IEC 61076-3-106 Variant 4 (V4)

Commercial data

Packaging size	1
Net weight	61.64 g
Country of origin	Malaysia
European customs tariff number	85444290
GTIN	5713140262645
eCl@ss	27060390 Ready-made data cable (unspecified)
ETIM	EC002599
UNSPSC 24.0	26121600
