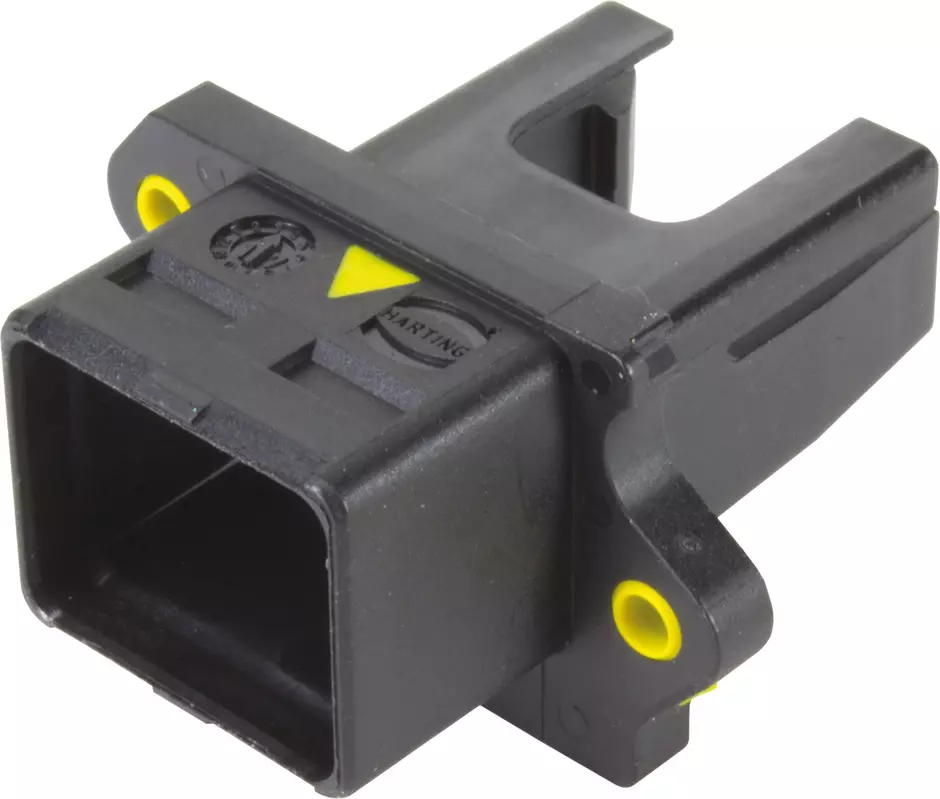

PushPull V4, compact housing w. clip

Article No.: 09 45 545 0042

Image is for illustration purposes only. Please refer to product description.

Bulkhead mounted housing

Article No.: 09 45 545 0042

to see prices and availability.

to see prices and availability.

Bulkhead mounted housing

Compact, With board locks, With integrated seal

PushPull

Material (hood/housing): Thermoplastic

Black

Material (seal): TPE-V

Identification

Version

Locking type	PushPull

Technical characteristics

Limiting temperature	-40 ... +85 °C
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Vibration resistance	10-500 Hz, 5 g, 0.35 mm, 2h/axis
Vibration resistance	5.72 m/s² acc. to IEC 61373 Category 1 Class B
Shock resistance	25 g / 11 ms, 3 shocks / axis and direction
Shock resistance	5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B

Material properties

Material (hood/housing)	Thermoplastic
Colour (hood/housing)	Black
Material (seal)	TPE-V
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R26

Specifications and approvals

Commercial data

Packaging size	100
Net weight	0.034 g
Country of origin	Romania
European customs tariff number	85389099
GTIN	5713140224049
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
