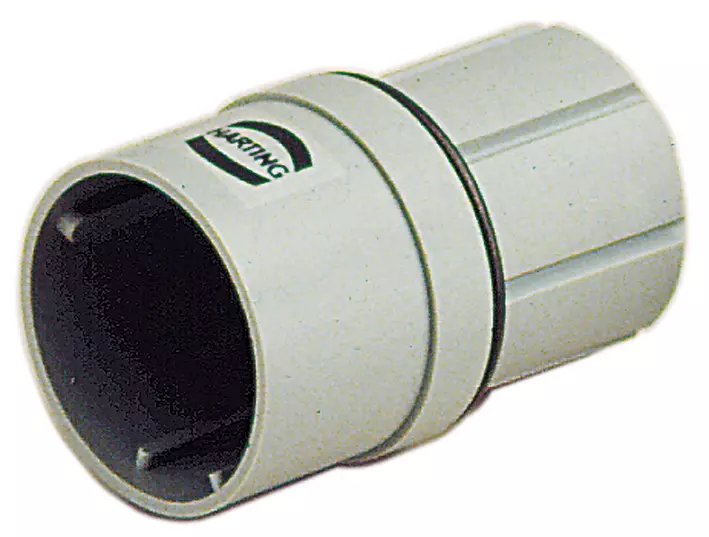

R 15-7+E-ISK-STI

Article No.: 09 15 007 3001

Image is for illustration purposes only. Please refer to product description.

Inserts

Article No.: 09 15 007 3001

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Male

Polyamide (PA)

RAL 7032 (pebble grey)

Rated current: ‌10 A

Contacts: 7

Identification

Category	Inserts
Series	R 15

Version

Termination method	Crimp termination
Gender	Male
Number of contacts	7
Details	for thermoplastic hoods / housings

Technical characteristics

Material properties

Material (insert)	Polyamide (PA)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	HB
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E235076
UL / CSA	CSA-C22.2 No. 182.3 ECBT8.E235076

Commercial data

Packaging size	10
Net weight	5.4 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140022676
eCl@ss	27440223 Contact insert for circular connectors
ETIM	EC003557
UNSPSC 24.0	39121421
