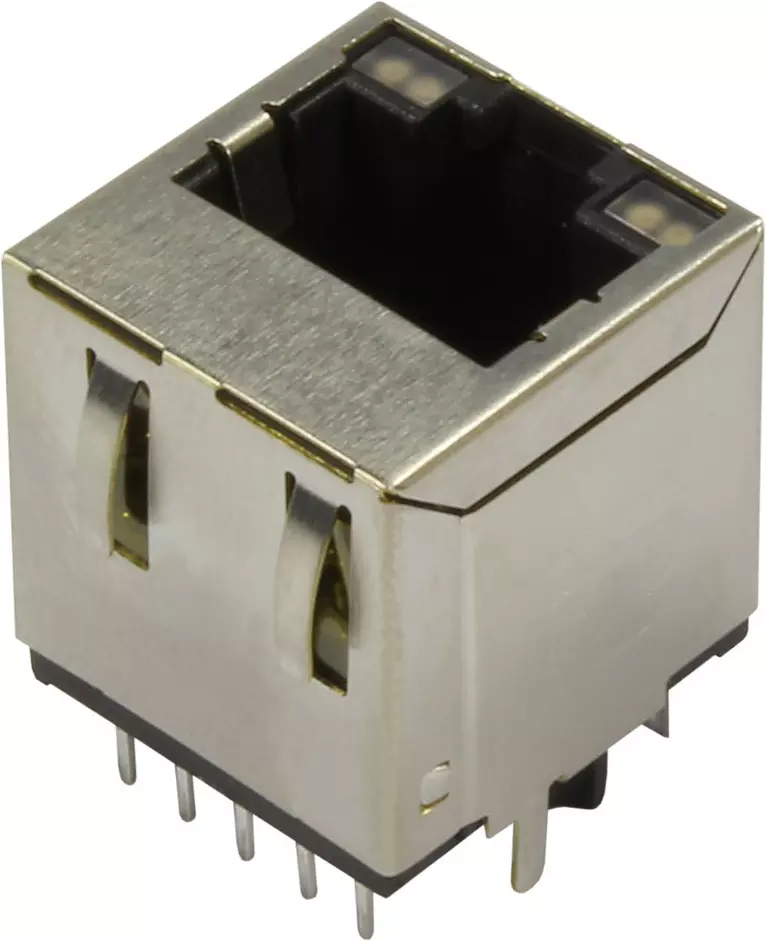

RJI RJ45 jack 1Gbit vert. biCo LED gn/ye

Article No.: 09 45 551 1141

Image is for illustration purposes only. Please refer to product description.

Female

Article No.: 09 45 551 1141

to see prices and availability.

to see prices and availability.

Female

RJ45, With bicolour LED, Vertical, With contact spring, with integrated transformer

Reflow soldering termination (THR)

Rated current: ‌1.5 A

Contacts: 8

Identification

Category	Connectors
Series	HARTING RJ Industrial^®
Element	Female
Specification	RJ45
	With bicolour LED
	Vertical
	With contact spring
	with integrated transformer

Version

Termination method	Reflow soldering termination (THR)
Shielding	Fully shielded, 360° shielding contact
Number of contacts	8
Pack contents	Tray

Technical characteristics

Rated current	‌ 1.5 A
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
Insulation resistance	>1000 MΩ @ 500 V DC
Contact resistance	≤ 45 mΩ
Limiting temperature	-40 ... +85 °C
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP20
Dielectric strenght	≤ 1.5 kV

Material properties

RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	60
Net weight	7.299 g
Country of origin	China
European customs tariff number	85366990
GTIN	5713140061675
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
