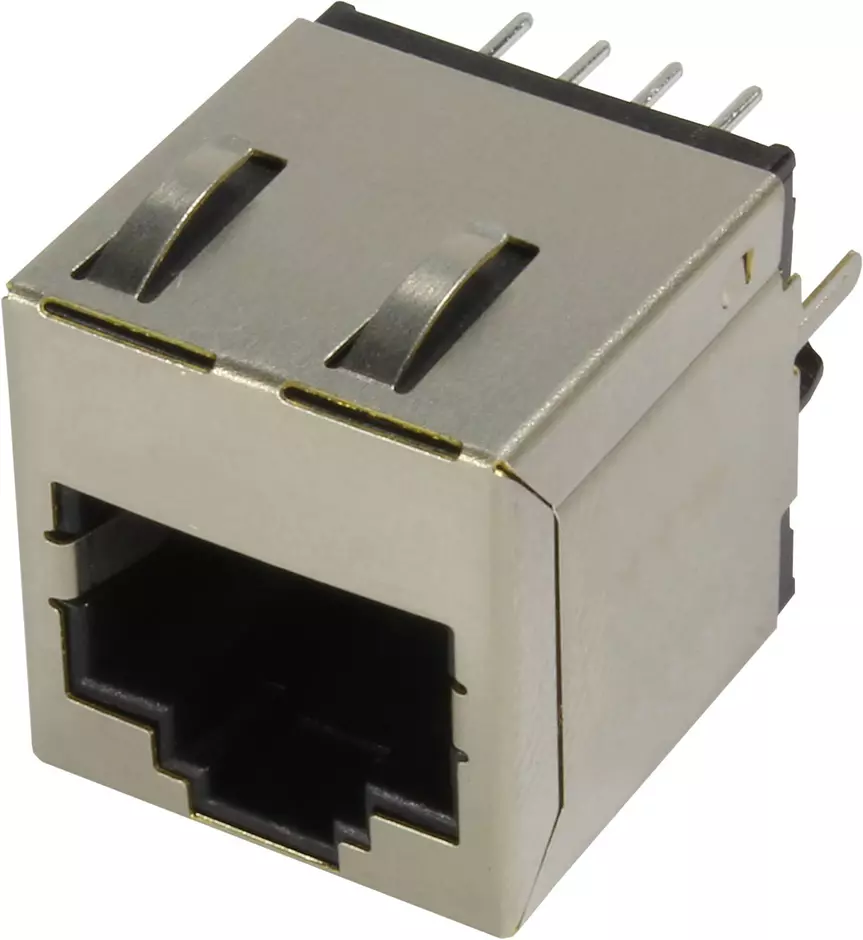

RJI RJ45 jack Cat.5 THR vertical 16x16

Article No.: 09 45 551 1120

Image is for illustration purposes only. Please refer to product description.

Female

Article No.: 09 45 551 1120

to see prices and availability.

to see prices and availability.

Female

Without LED, Vertical, With contact spring

Reflow soldering termination (THR)

Rated current: ‌1.5 A

Contacts: 8

Identification

Version

Termination method	Reflow soldering termination (THR)
Shielding	Fully shielded, 360° shielding contact
Number of contacts	8
Pack contents	Tray

Technical characteristics

Rated current	‌ 1.5 A
Rated voltage	‌ 125 V AC
Transmission characteristics	Cat. 5 Class D up to 100 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
Insulation resistance	>1000 MΩ @ 500 V DC
Contact resistance	≤ 45 mΩ
Limiting temperature	-40 ... +85 °C
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP20
Dielectric strenght	≤ 1.5 kV

Material properties

RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	60
Net weight	5 g
Country of origin	China
European customs tariff number	85366990
GTIN	5713140061569
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
