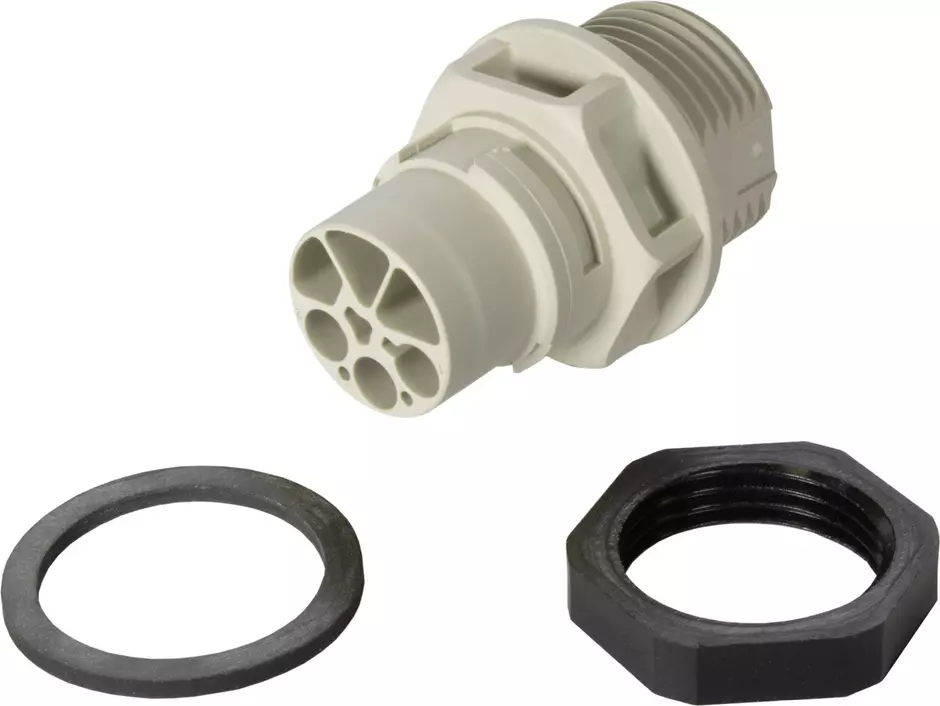

Image is for illustration purposes only. Please refer to product description.

Panel feed through

Article No.: 97 00 000 4423

to see prices and availability.

to see prices and availability.

Panel feed through

for front mounting

Identification

Version

Gender	Male
Shielding	Unshielded
Number of contacts	5
Number of signal contacts	3
Number of power contacts	2
PE contact	Yes
Locking type	Toggle locking
Details	Please order crimp contacts separately.
Pack contents	incl. lock nut

Technical characteristics

Conductor cross-section (mm²)	0.14 ... 2.5 mm²
Conductor cross-section (AWG)	AWG 26 ... AWG 14
Pollution degree	3
Rated current (signal)	4 A
Rated voltage (signal)	‌ 48 V AC/DC
Rated impulse voltage (signal)	0.8 kV
Pollution degree (signal)	3
Rated current (power)	20 A
Rated voltage (power)	‌ 48 V AC/DC
Rated voltage conductor-conductor (Power)	48 V
Rated impulse voltage (power)	0.8 kV
Pollution degree (power)	3
Tightening torque	‌2 Nm Lock nut
Limiting temperature	-30 ... +90 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Isolation group	I (600 ≤ CTI)
Thickness of the panel	1 ... ‌10 mm

Material properties

Material (insert)	Polyamide (PA)
Material (hood/housing)	Polyamide (PA)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Specifications	IEC 61076-2-116
Specifications	IEC 61984

Commercial data

Packaging size	25
Country of origin	Romania
European customs tariff number	85366990
eCl@ss	27440103 Sensor-actuator connector chassis (sensor technology acturator)
UNSPSC 24.0	39121413
