har-switch momentary 90°

Article No.: 09 45 453 1206

New

Image is for illustration purposes only. Please refer to product description.

New

Selector switches

Article No.: 09 45 453 1206

to see prices and availability.

to see prices and availability.

Selector switches

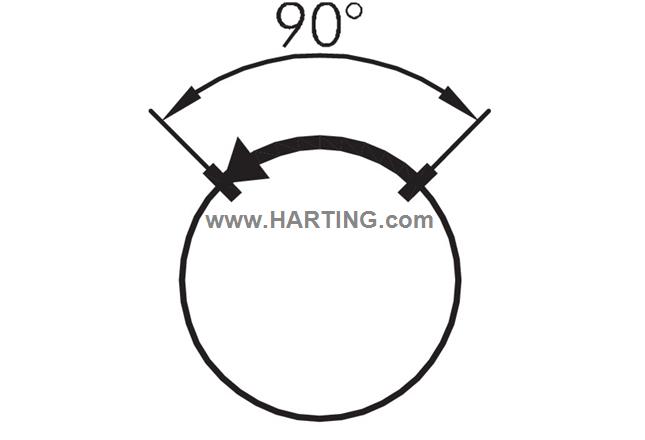

Momentary 90°

anthracite

Diameter of the mounting hole: 22.3 mm

This item requires additional contact blocks and a module holder to be functional. Please select these under “Matching Products”.

Identification

Version

Diameter of the mounting hole	22.3 mm

Technical characteristics

Actuation path	6 mm
Overvoltage category	III (protection by low voltage)
Tightening torque	1.5 ... ‌2.2 Nm Fixing nut
Operating temperature	-25 ... +70 °C
Storage temperature	-40 ... +80 °C
Degree of protection acc. to IEC 60529	IP65
Isolation group	I (600 ≤ CTI)
Thickness of the panel	1 ... ‌7 mm

Material properties

RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	10
Net weight	19 g
Country of origin	Germany
European customs tariff number	85365080
GTIN	5713140448346
eCl@ss	27371213 Front element for selector switches
ETIM	EC000222
UNSPSC 24.0	39122221
