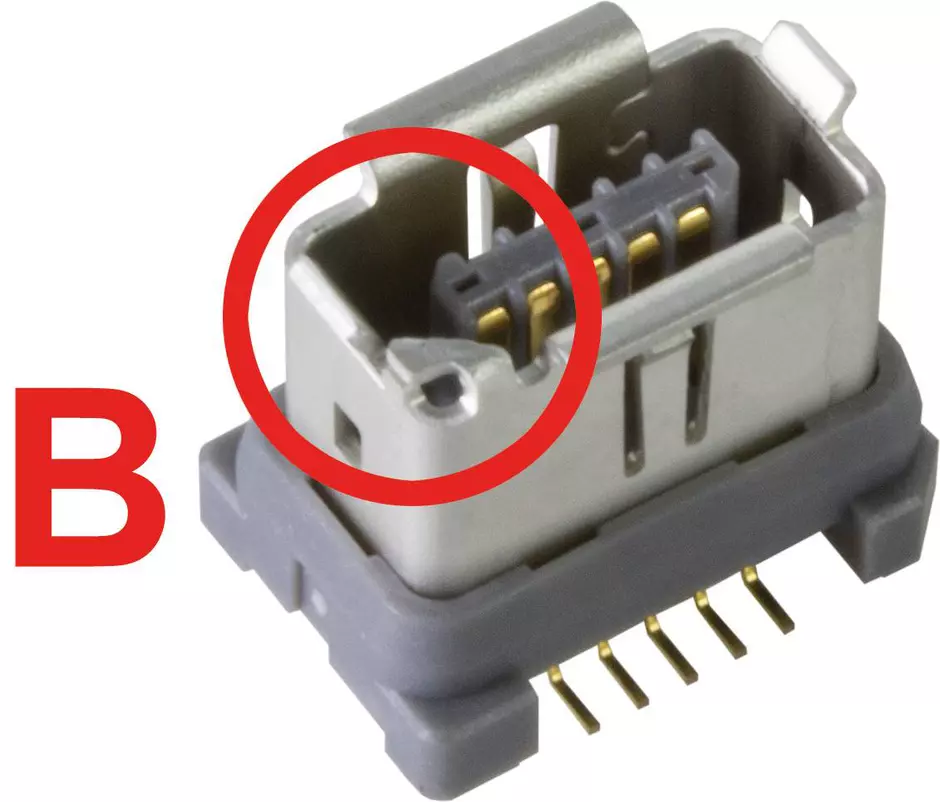

ix Industrial 10B-1 jack V (T&R450)

Article No.: 09 45 281 9002

Image is for illustration purposes only. Please refer to product description.

PCB connector

Article No.: 09 45 281 9002

to see prices and availability.

to see prices and availability.

PCB connector

Vertical

Solder termination

Rated current: ‌1.5 A

Contacts: 10

Copper alloy

Au ≥ 0.2 µm over Ni ≥ 2 µm Mating side, Au ≥ 0.03 µm over Ni ≥ 2 µm Termination side

Coding: Type B

Polyamide (PA)

Grey

Identification

Version

Termination method	Solder termination
Shielding	Fully shielded, 360° shielding contact
Number of contacts	10
PE contact	false
Coding	Type B
Pack contents	On a reel

Technical characteristics

Rated voltage	50 V AC
Rated voltage	60 V DC
Rated current	1.5 A
Rated current	3 A per contact when used with 4 contacts (1,2,6,7)
Insulation resistance	>500 MΩ
Contact resistance	30 mΩ
Shielding resistance	100 mΩ
Limiting temperature	[-40] ... [+85 °C]
Storage temperature	[-30] ... [+60 °C]
Relative humidity	[95 %] Non-condensing (operation)
Relative humidity	[95 %] Non-condensing (storage/transport)
Insertion force	25 N
Withdrawal force	25 N
Mating cycles	5000
Degree of protection acc. to IEC 60529	IP20
Test voltage Ur.m.s.	[0,5 kV]

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
Material (insert)	Polyamide (PA)
Material (shielding)	Stainless steel
Material (shielding)	Sn ≥ 1 µm over Ni ≥ 0.2 µm Mating side (shielding)
Colour (insert)	Grey
Material (contacts)	Copper alloy
Surface (contacts)	Au ≥ 0.2 µm over Ni ≥ 2 µm Mating side
Surface (contacts)	Au ≥ 0.03 µm over Ni ≥ 2 µm Termination side
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	450
Net weight	2.5 g
Country of origin	China
GTIN	5713140223172
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
