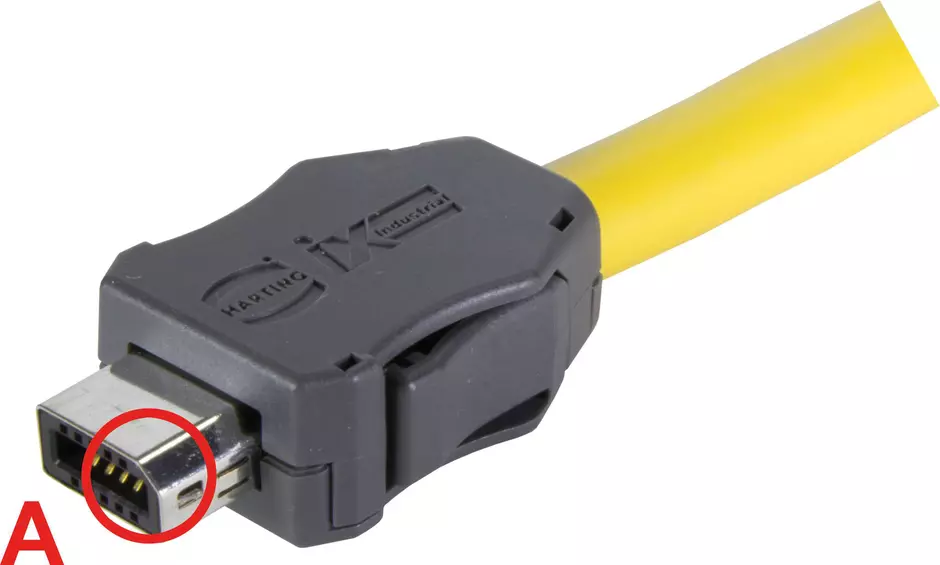

ix Industrial 8A-1 plug SL-I22

Article No.: 09 45 181 2563 XL

New

Image is for illustration purposes only. Please refer to product description.

New

Connectors

Article No.: 09 45 181 2563 XL

to see prices and availability.

to see prices and availability.

Connectors

Cable connector Straight

IDC insulation displacement termination

Rated current: ‌1.5 A

Contacts: 8

Copper alloy

Au ≥ 0.2 µm over Ni ≥ 2 µm Mating side, Au ≥ 0.03 µm over Ni ≥ 2 µm Termination side

Material: Polycarbonate (PC)

Degree of protection: IP20

Identification

Version

Termination method	IDC insulation displacement termination
Shielding	Fully shielded, 360° shielding contact
Number of contacts	8
PE contact	false
Coding	Type A
Pack contents	Bulk packaging

Technical characteristics

Conductor cross-section (AWG)	AWG 22/7
Wire outer diameter	[1,4] ... [‌1,6 mm]
Rated voltage	50 V AC
Rated voltage	60 V DC
Rated current	1.5 A
Rated current	3 A per contact when used with 4 contacts (1,2,6,7)
Insulation resistance	>500 MΩ
Contact resistance	30 mΩ
Shielding resistance	100 mΩ
Limiting temperature	[-40] ... [+85 °C]
Storage temperature	[-30] ... [+60 °C]
Relative humidity	[95 %] Non-condensing (operation)
Relative humidity	[95 %] Non-condensing (storage/transport)
Insertion force	25 N
Withdrawal force	25 N
Mating cycles	5000
Degree of protection acc. to IEC 60529	IP20
Cable diameter	[5,5] ... [7,2 mm]
Test voltage Ur.m.s.	[0,5 kV]
Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	10 Mbit/s
	100 Mbit/s
	1 Gbit/s
	2.5 Gbit/s
	5 Gbit/s
Retention force	[≥80 N] locking

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polyamide (PA)
Material (shielding)	Stainless steel
	Ni ≥ 1 µm Termination side (shielding case)
	Ni ≥ 0.2 µm Termination side (shielding shell)
Colour (insert)	Black
Colour (insert)	Grey
Material (contacts)	Copper alloy
Surface (contacts)	Au ≥ 0.2 µm over Ni ≥ 2 µm Mating side
Surface (contacts)	Au ≥ 0.03 µm over Ni ≥ 2 µm Termination side
Material (hood/housing)	Polycarbonate (PC)
Colour (hood/housing)	Grey
Material flammability class acc. to UL 94	V-0

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E102079
UL / CSA	CSA-C22.2 No. 182.3 ECBT8.E102079
PROFINET	true
Specifications	IEC 61076-3-124
	EN 45545-2
	IEEE 802.3af Power over Ethernet (PoE)
	IEEE 802.3at Power over Ethernet (PoE+)
	IEEE 802.3bt Power over Ethernet (4PPoE)

Commercial data

European customs tariff number	85389099
Packaging size	100
Net weight	10.256 g
Country of origin	China
GTIN	5713140223219
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
