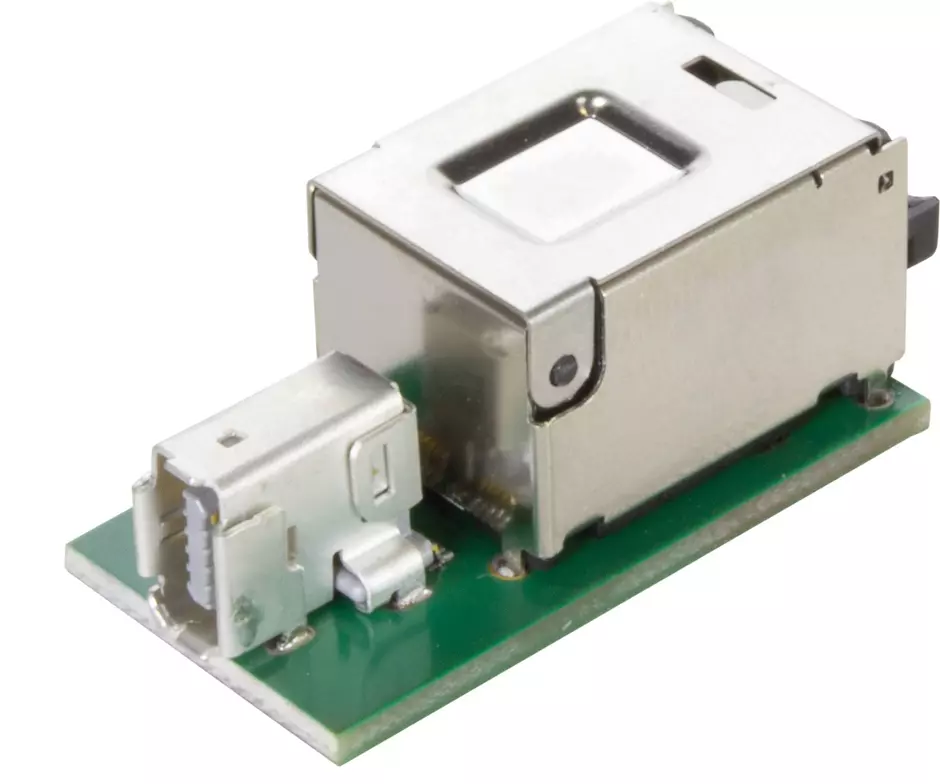

Image is for illustration purposes only. Please refer to product description.

Adapter PCB

Article No.: 20 82 008 0001

to see prices and availability.

to see prices and availability.

Adapter PCB

preLink® PCB to ix Industrial® module

preLink® IDC insulation displacement termination

Conductor cross-section: 0.1 ... 0.12 mm² 0.22 ... 0.32 mm²

Identification

Category	Connectors
Element	Adapter PCB
Specification	preLink^® PCB to ix Industrial^® module
Series	preLink®
Series	HARTING ix Industrial®

Version

Termination method	preLink^® IDC insulation displacement termination
Shielding	Shielded
Number of contacts	8
Coding	Type A
Details	This item requires additional a termination block. Please select these under “Matching Products”.

Technical characteristics

Conductor cross-section (mm²)	[0,1] ... [0,12 mm²]
Conductor cross-section (mm²)	[0,22] ... [0,32 mm²]
Conductor cross-section (AWG)	AWG 27 ... AWG 26
Conductor cross-section (AWG)	AWG 24 ... AWG 22
Rated voltage	50 V AC
Rated voltage	60 V DC
Rated current	1.5 A
Contact resistance	30 mΩ
Contact resistance, shielding	100 mΩ
Limiting temperature	[-40] ... [+85 °C]
Storage temperature	[-30] ... [+60 °C]
Insertion force	25 N
Withdrawal force	25 N
Degree of protection acc. to IEC 60529	IP20
Test voltage Ur.m.s.	[0,5 kV]
Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	10 Mbit/s
	100 Mbit/s
	1 Gbit/s
	2.5 Gbit/s
	5 Gbit/s

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	11.7 g
Country of origin	Germany
GTIN	5713140224254
eCl@ss	27440190 Industry connector (unspecified)
ETIM	EC001264
UNSPSC 24.0	39121409

Links

Whitepaper	https://www.harting.com/sites/default/files/2023-09/2023-07_WP_preLink-EN.pdf
