M17

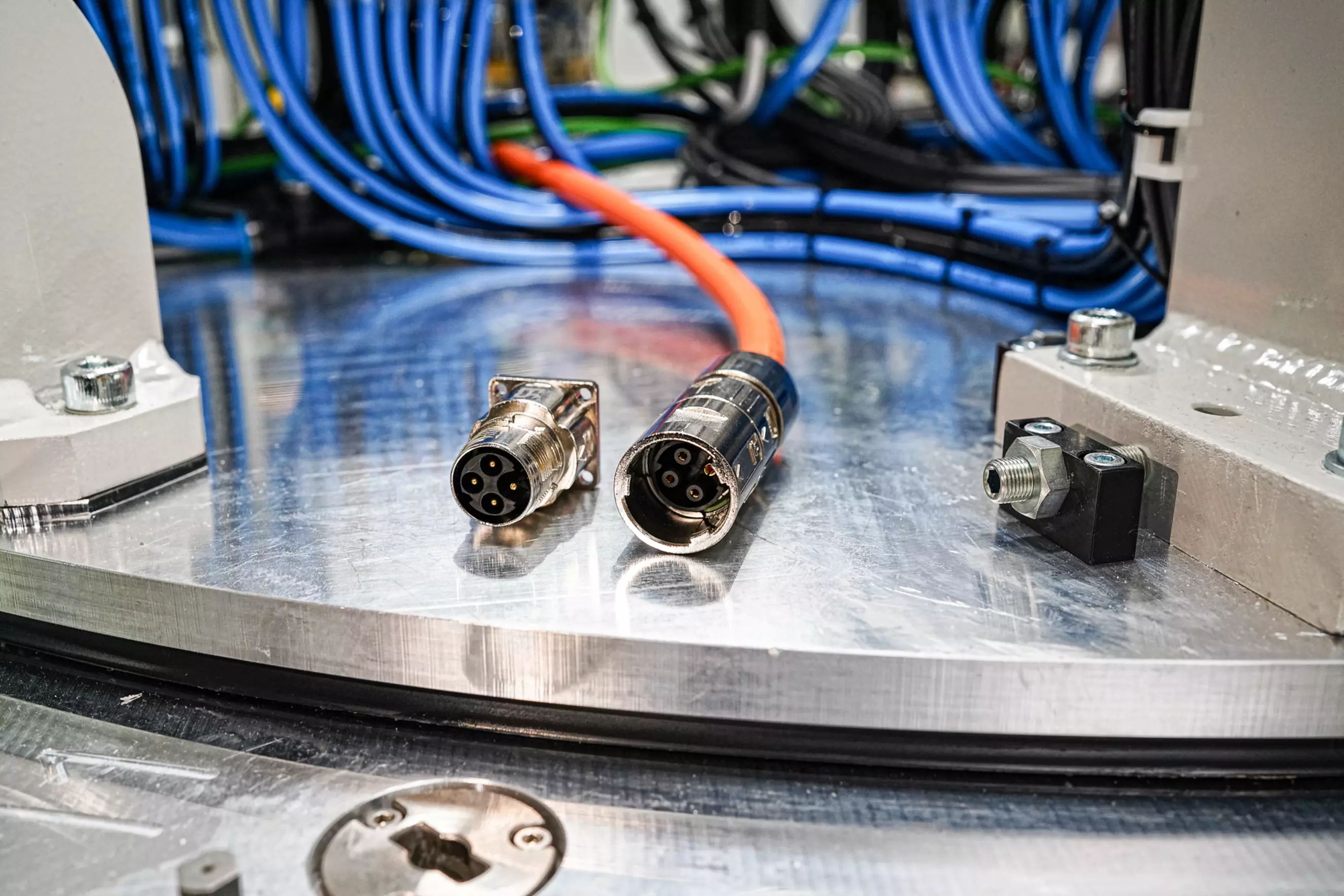

In order to make material usage and space requirements in connection technology suitable for the application again, HARTING is presenting circular connectors in size M17. With a power transmission of up to 7.5kW and the increased efficiency of modern drives, the use of an M17 interface offers clear savings potential. With different coding combinations of signal, power and PE, almost all applications for modern drives can be covered.
Series highlights
Configurator available: easily create an individual connector for your application
Signal: 8, 12 , 17 poles
Power: 3+PE, 5+PE, 6+PE, 7+PE, 5+3+PE
Power transmission up to 7.5 kw
har-lock quick locking without tools
EMC protection thanks to robust metal housing
IP 66/67
Filter
Products 74
Relevance
Hand crimping tool
M17 crimping tool for single contacts
Article No.: 09 99 000 0695
Locator
Locator for M17 crimping tool
Article No.: 09 99 000 0696
Cable to cable housing
M17-PFTH-SCR/BAY-STR-RM-M20X1.5-3.5-6.5
Article No.: 21 17 200 3100
Inserts
M17-INS-POW-CRT-6P-5+PE-FE
Article No.: 21 17 524 0000
Flange housing
M17-DEVH-SCR/BAY-STR-FM-M18X0.75
Article No.: 21 17 200 4600
Flange housing
M17-DEVH-SCR/BAY-STR-FM-21X21-2.7
Article No.: 21 17 200 4100
Inserts
M17-INS-SIG-CRT-8P-FE
Article No.: 21 17 502 0000
Cable to cable housing
M17-PFTH-SCR/BAY-STR-RM-M20X1.5-10-13
Article No.: 21 17 200 3300
Cable to cable housing
M17-PFTH-SCR/BAY-STR-RM-M20X1.5-6.5-10
Article No.: 21 17 200 3200
Inserts
M17-INS-POW-CRT-7P-6+PE-FE
Article No.: 21 17 526 0000
Inserts
M17-INS-POW-CRT-8P-7+PE-MA
Article No.: 21 17 527 0000
Inserts
M17-INS-POW-CRT-6P-5+PE-MA
Article No.: 21 17 523 0000
Inserts
M17-INS-POW-CRT-8P-7+PE-FE
Article No.: 21 17 528 0000
Inserts
M17-INS-SIG-CRT-8P-MA
Article No.: 21 17 501 0000
Inserts
M17-INS-POW-CRT-7P-6+PE-MA
Article No.: 21 17 525 0000
Panel feed through housing
M17-DEVH-SCR/BAY-ANG-TRN-28x28-3.2
Article No.: 21 17 200 6300
Panel feed through housing
M17 -DEVH-SCR/BAY-ANG-TRN-25x25-3.2
Article No.: 21 17 200 6200
Panel feed through housing
M17-DEVH-SCR/BAY-ANG-TURN-21x21-2.7
Article No.: 21 17 200 6400
Cable assemblies
M17 FE str molded 17p PUR open end,10m
Article No.: 21 37 520 0F02 100
Cable assemblies
M17 FE str molded 17p PVC open end,5m
Article No.: 21 37 520 0F04 050
