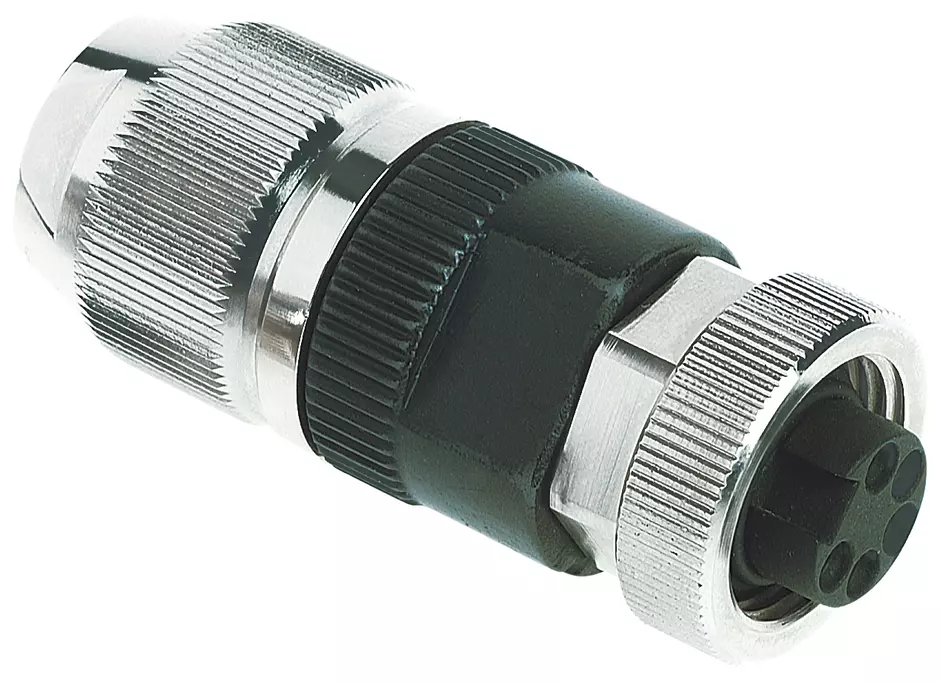

Circular Connector w. Harax 7/8" L 5 F

Article No.: 21 04 116 2505

Image is for illustration purposes only. Please refer to product description.

Cable connector

Article No.: 21 04 116 2505

to see prices and availability.

to see prices and availability.

Cable connector

Straight

Female

HARAX® connection technology

Polyamide (PA), Thermoplastic polyurethane (TPU)

Contacts: 5

Copper alloy Au over Ni Mating side

Conductor cross-section: 0.75 ... 1.5 mm²

Rated current: ‌10 A

Polyamide (PA), Zinc die-cast, Thermoplastic polyurethane (TPU)

Screw locking

Degree of protection: IP65 / IP67 mated condition

Identification

Version

Termination method	HARAX^® connection technology
Gender	Female
Shielding	Unshielded
Number of contacts	5
Locking type	Screw locking

Technical characteristics

Conductor cross-section	0.75 ... 1.5 mm²
Conductor cross-section [AWG]	AWG 18 ... AWG 16
Wire outer diameter	≤ 2.8 mm
Rated current	‌ 10 A
Rated voltage conductor-earth	230 V
Rated voltage conductor-conductor	400 V
Rated impulse voltage	4.8 kV
Pollution degree	3
Overvoltage category	III
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 10 mΩ
Tightening torque	1.5 Nm
Wrench size (knurled screw / knurled nut)	22
Limiting temperature	-40 ... +85 °C
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP65 / IP67 mated condition
Cable diameter	6.8 ... 12.5 mm
Isolation group	I (600 ≤ CTI)

Material properties

Material (insert)	Polyamide (PA)
Material (insert)	Thermoplastic polyurethane (TPU)
Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni Mating side
Material (hood/housing)	Polyamide (PA)
	Zinc die-cast
	Thermoplastic polyurethane (TPU)
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	ba9f6f96-3ce5-4eaf-9782-1859ca585f85
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Commercial data

Packaging size	1
Net weight	75 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140139848
eCl@ss	27440116 Circular connector (for field assembly)
ETIM	EC002635
UNSPSC 24.0	39121413
