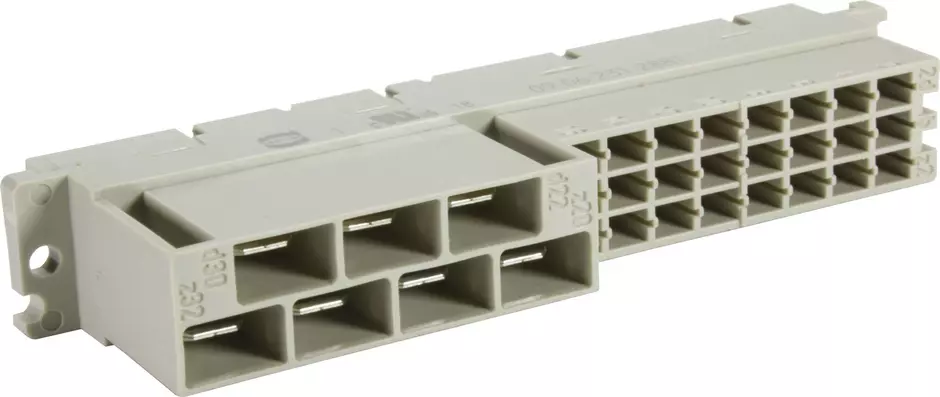

DIN-Power MH24+7FTC1-1

Article No.: 09 06 231 2881

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Female connector

Article No.: 09 06 231 2881

to see prices and availability.

to see prices and availability.

Female connector

Crimp termination, Faston termination

Rated current: 6, 15

Contacts: 31

Copper alloy

Silver plated Mating side, power contacts, Silver plated Termination side, power contacts

Coding: Hole coding, Shroud coding, Coding with loss of contacts

PCB fixing: With fixing flange

Thermoplastic resin, glass-fibre filled

RAL 7032 (pebble grey)

Identification

Version

Termination method	Crimp termination
Termination method	Faston termination
Connection type	PCB to cable
Number of contacts	31
Number of signal contacts	24
Number of power contacts	7
Contact configuration	Row d, positions 22, 26, 30 and row z, positions 20, 24, 28, 32
Coding	Hole coding
	Shroud coding
	Coding with loss of contacts
PCB fixing	With fixing flange
Details	Please order crimp contacts separately.

Technical characteristics

Contact spacing (mating side)	3.81 mm
Contact spacing (mating side)	5.08 mm
Rated current	‌ 6 A
Rated current	‌ 15 A
Rated current	Rated current measured at 20 °C, see derating curve for details
Rated current (signal)	6 A
Rated current (power)	15 A
Clearance distance	≥ 1.6 mm
Clearance distance	≥ 4.5 mm
Creepage distance	≥ 3 mm
Creepage distance	≥ 8 mm
Insulation resistance	>10¹² Ω
Contact resistance	≤ 20 mΩ
Limiting temperature	-55 ... +125 °C
Insertion force	≤ 85 N
Withdrawal force	≤ 85 N
Test voltage Ur.m.s.	1.55 kV (contact-contact)
	1.55 kV (contact-ground)
	3.1 kV (contact-contact)
	3.1 kV (contact-ground)
Isolation group	IIIa (175 ≤ CTI < 400)
Hot plugging	No

Material properties

Material (insert)	Thermoplastic resin, glass-fibre filled
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated Mating side, power contacts
Surface (contacts)	Silver plated Termination side, power contacts
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R26

Specifications and approvals

Commercial data

Packaging size	20
Net weight	32.3 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140012998
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
