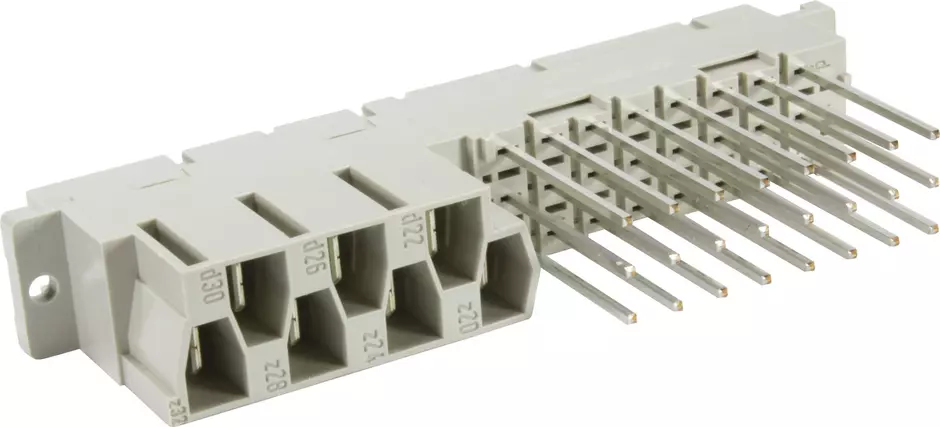

DIN-Power MH24+7FWT22,0C1-2

Article No.: 09 06 231 6821

Image is for illustration purposes only. Please refer to product description.

Female connector

DIN-Power MH24+7FWT22,0C1-2

Article No.: 09 06 231 6821

to see prices and availability.

Free sample

Product inquiry

to see prices and availability.

Free sample

Product inquiry

Properties overview

Female connector

Wrap termination, Faston termination

Rated current: 6, 15

Contacts: 31

Straight

Copper alloy

Noble metal Mating side, signal contacts, Silver plated Mating side, power contacts, Sn over Ni Termination side, signal contacts, Sn over Ni Termination side, power contacts

Performance level: 2, acc. to IEC 60603-2

Coding: Hole coding, Shroud coding, Coding with loss of contacts

PCB fixing: With fixing flange

Thermoplastic resin, glass-fibre filled

RAL 7032 (pebble grey)

Product details

Identification

Category	Connectors
Series	DIN 41612
Identification	Type MH 24+7
Element	Female connector
Description of the contact	Straight

Version

Termination method	Wrap termination
Termination method	Faston termination
Connection type	PCB to cable
Connection type	Cable to cable
Number of contacts	31
Number of signal contacts	24
Number of power contacts	7
Contact configuration	Rows z, d and b, positions 2, 4, ... , 14, 16 and row z, positions 20, 24, 28, 32 and row d, positions 22, 26, 30
Termination length	22 mm
Coding	Hole coding
	Shroud coding
	Coding with loss of contacts
PCB fixing	With fixing flange

Technical characteristics

Contact spacing (mating side)	3.81 mm
Contact spacing (mating side)	5.08 mm
Rated current	‌ 6 A
Rated current	‌ 15 A
Rated current	Rated current measured at 20 °C, see derating curve for details
Rated current (signal)	6 A
Rated current (power)	15 A
Clearance distance	≥ 1.6 mm
Clearance distance	≥ 4.5 mm
Creepage distance	≥ 3 mm
Creepage distance	≥ 8 mm
Insulation resistance	>10¹² Ω
Contact resistance	≤ 15 mΩ
Limiting temperature	-55 ... +125 °C
Insertion force	≤ 85 N
Withdrawal force	≤ 85 N
Performance level	2
Performance level	acc. to IEC 60603-2
Mating cycles	≥ 400
Test voltage Ur.m.s.	1.55 kV (contact-contact)
Test voltage Ur.m.s.	1.55 kV (contact-ground)
Isolation group	IIIa (175 ≤ CTI < 400)
Hot plugging	No

Material properties

Material (insert)	Thermoplastic resin, glass-fibre filled
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal Mating side, signal contacts
	Silver plated Mating side, power contacts
	Sn over Ni Termination side, signal contacts
	Sn over Ni Termination side, power contacts
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R26

Specifications and approvals

Specifications	IEC 60603-2 (complementary)
UL / CSA	UL 1977 ECBT2.E102079
UL / CSA	CSA-C22.2 No. 182.3 ECBT8.E102079
Railway classification	F4/I3 acc. to NFF 16-101/102

Commercial data

Packaging size	20
Net weight	30 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140013032
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
