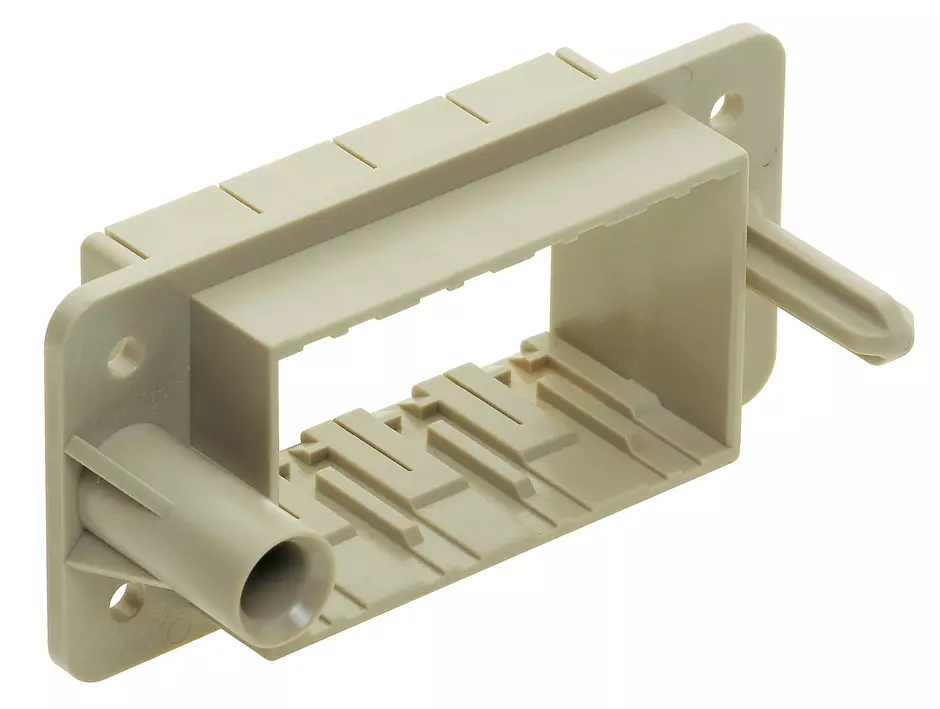

Docking Frame for 4 modules, fixed mount

Article No.: 09 14 016 1711

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Docking frame

Article No.: 09 14 016 1711

to see prices and availability.

to see prices and availability.

Docking frame

Fixed, for 4 modules, a ... d

Identification

Category	Accessories
Series	Han-Modular^®
Type of accessory	Docking frame
Description of the accessory	Fixed
	for 4 modules
	a ... d

Technical characteristics

Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 10,000
Note on the mating cycles	Mating cycles with other HMC components
Degree of protection acc. to IEC 60529	IP20
Lock-in range	± 4 mm

Material properties

Material	Polycarbonate (PC)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Specifications	IEC 60664-1
Specifications	IEC 61984

Commercial data

Packaging size	2
Net weight	28.4 g
Country of origin	Romania
European customs tariff number	85389099
GTIN	5713140021143
eCl@ss	27440206 Module carrier frame for industrial connectors
ETIM	EC002312
UNSPSC 24.0	39121421
