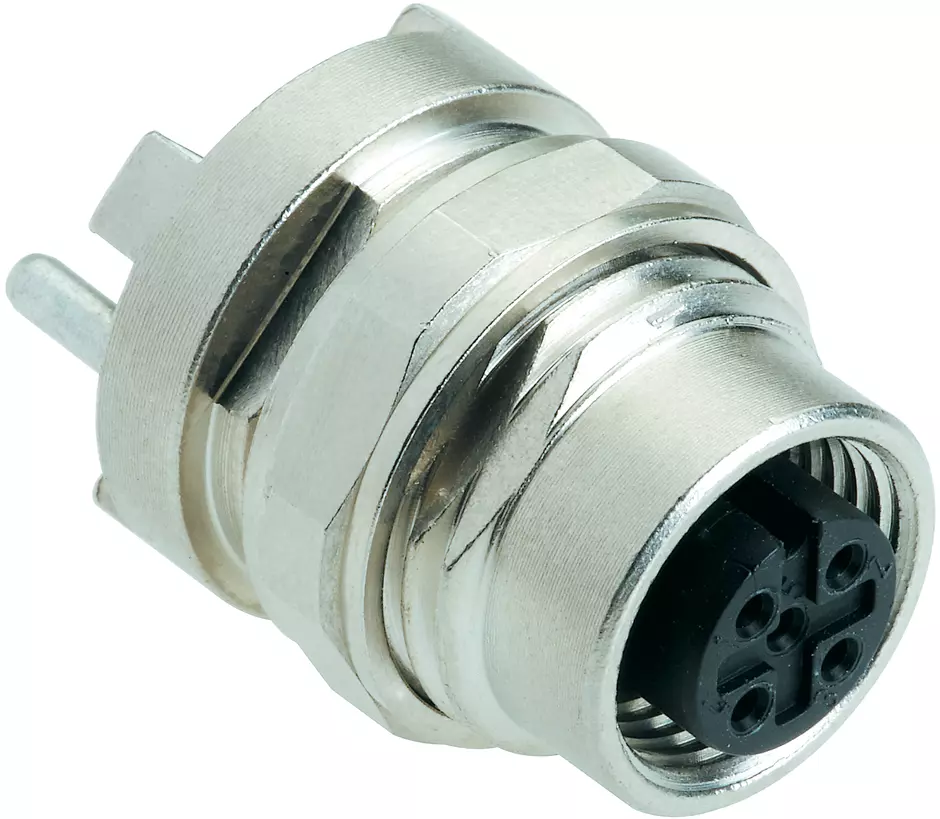

Gerätebuchse M12-A-kod.IP20

Article No.: 21 03 321 6510

Image is for illustration purposes only. Please refer to product description.

PCB adapter

Article No.: 21 03 321 6510

to see prices and availability.

to see prices and availability.

PCB adapter

Straight, for rear mounting

Reflow soldering termination (THR)

Rated current: ‌4 A

Contacts: 5

Copper alloy

Au over Ni Mating side

Coding: A-coding

Polyamide (PA)

Identification

Version

Termination method	Reflow soldering termination (THR)
Locking type	Screw locking
Gender	Female
Shielding	Shielded
Number of contacts	5
Coding	A-coding

Technical characteristics

Rated current	4 A
Rated voltage	60 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Insulation resistance	>10⁸ Ω
Contact resistance	10 mΩ
Limiting temperature	[-40] ... [+85 °C]
Tightening torque	‌2 Nm Lock nut
Mating cycles	100
Degree of protection acc. to IEC 60529	IP20
Overvoltage category	III
Isolation group	I (600 ≤ CTI)

Material properties

ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polyamide (PA)
Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni Mating side
Material (hood/housing)	Zinc die-cast
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Specifications	IEC 61076-2-101

Commercial data

European customs tariff number	85366990
Packaging size	10
Net weight	19.1 g
Country of origin	Romania
GTIN	5713140137851
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
