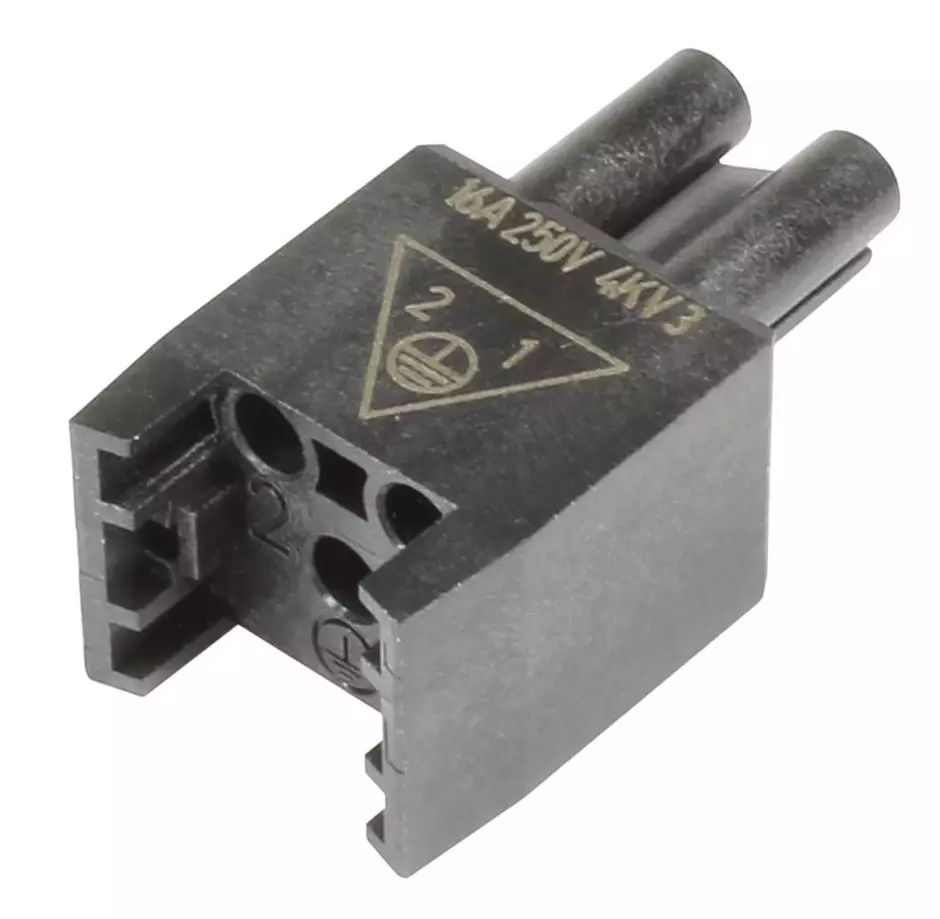

HPP V4 Power insert crimp 250V/16A 3p

Article No.: 09 46 500 3401

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 46 500 3401

to see prices and availability.

to see prices and availability.

Connectors

Female

Crimp termination

Rated current: ‌16 A

Contacts: 2

Conductor cross-section: 0.75 ... 2.5 mm² Stranded

Identification

Version

Technical characteristics

Conductor cross-section	0.75 ... 2.5 mm² Stranded
Conductor cross-section [AWG]	AWG 20 ... AWG 12 Stranded
Wire outer diameter	≤ 2.9 mm
Rated current	‌ 16 A
Rated voltage	250 V
Rated impulse voltage	4 kV
Pollution degree	3
Stripping length	5 mm Cores
Stripping length	30 mm cable jacket
Limiting temperature	-40 ... +70 °C
Mating cycles	≥ 750
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67

Material properties

Material (hood/housing)	Thermoplastic
Colour (hood/housing)	Black
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained

Specifications and approvals

Commercial data

Packaging size	100
Net weight	2.4 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140065536
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
