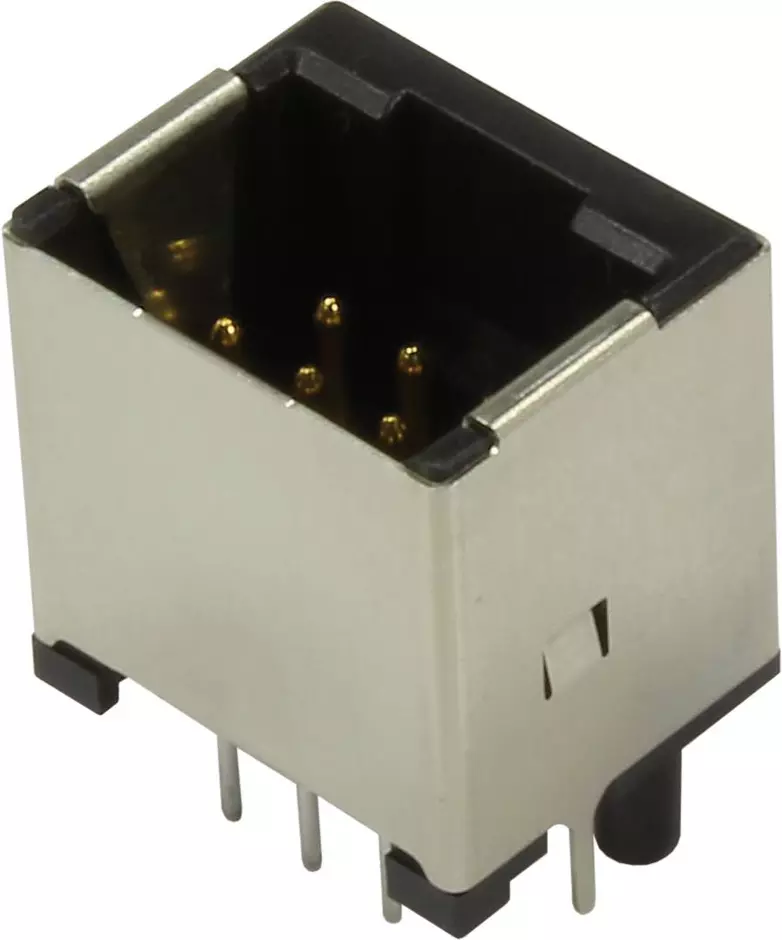

HPP V4 Signal THT 10-pole vertical jack

Article No.: 09 45 545 9012

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 45 545 9012

to see prices and availability.

to see prices and availability.

Connectors

Solder jack

Solder termination

Rated current: ‌5 A

Contacts: 10

Copper alloy

Noble metal over Ni Mating side, Sn over Ni Termination side

Identification

Version

Termination method	Solder termination
Shielding	Fully shielded, 360° shielding contact
Number of contacts	10

Technical characteristics

Contact spacing (termination side)	2.4 mm
Contact spacing (termination side)	3 mm
Contact spacing (mating side)	2.4 mm
Contact spacing (mating side)	3 mm
Rated current	‌ 5 A
Rated voltage	50 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Clearance distance	≥ 1.4 mm
Creepage distance	≥ 1.4 mm
Insulation resistance	>10⁹ Ω
Contact resistance	≤ 10 mΩ
Limiting temperature	-40 ... +85 °C
Insertion force	‌ 50 N
Withdrawal force	‌ 50 N
Mating cycles	≥ 500
Test voltage Ur.m.s.	1.5 kV (contact-contact)
Test voltage Ur.m.s.	1.5 kV (contact-ground)
Isolation group	I (600 ≤ CTI)
Vibration resistance	10-500 Hz, 5 g, 0.35 mm, 10 sweep cycles acc. to IEC 61373 Category 1 Class B
Shock resistance	50 g / 11 ms, 10 shocks / axis and direction

Material properties

Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side
Surface (contacts)	Sn over Ni Termination side
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	40
Net weight	6.042 g
Country of origin	China
European customs tariff number	85366990
GTIN	5713140061477
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
