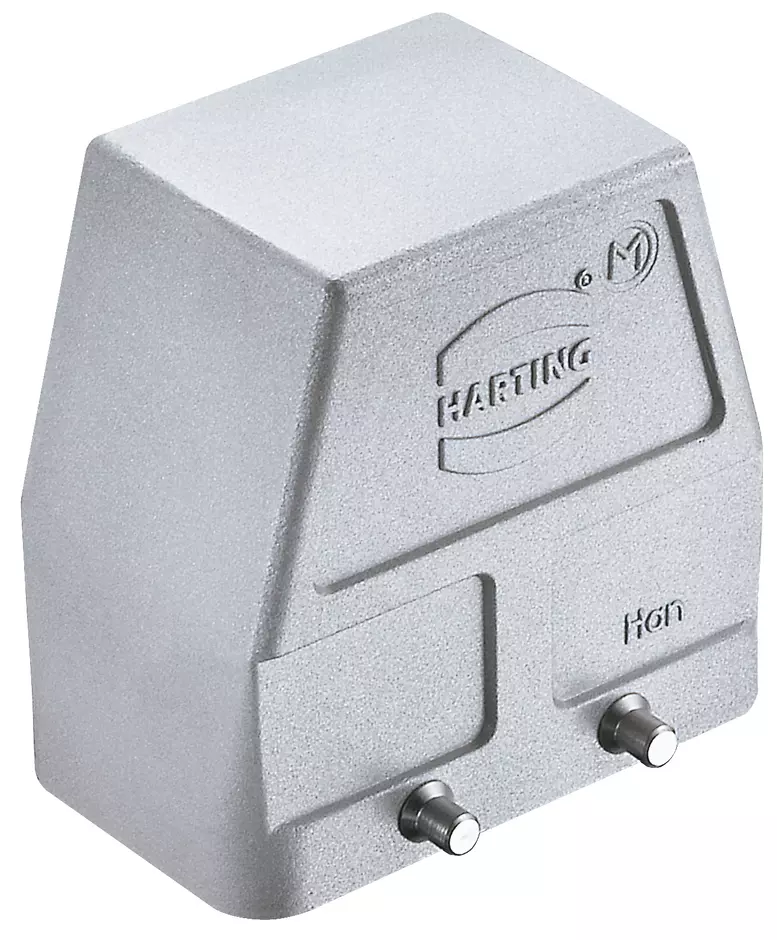

Han 10EMC/B-HSE-M25 (HT)

Article No.: 19 62 810 0526

ConfigurableCustomizable

Image is for illustration purposes only. Please refer to product description.

ConfigurableCustomizable

Hood

Article No.: 19 62 810 0526

to see prices and availability.

to see prices and availability.

Hood

Size: 10 B

High construction

Double locking lever

Side entry

1x M25

Material (hood/housing): Aluminium die-cast

Uncoated

Unpainted

Identification

Version

Technical characteristics

Limiting temperature	-40 ... +125 °C
Limiting temperature	-40 ... +200 °C With Han® High Temp components
Note on the limiting temperature	For use as a connector according to IEC 61984.
Mating cycles	≥ 500
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP66
Type rating acc. to UL 50 / UL 50E	4
Type rating acc. to UL 50 / UL 50E	12

Material properties

Material (hood/housing)	Aluminium die-cast
Surface (hood/housing)	Uncoated
Colour (hood/housing)	Unpainted
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel

Specifications and approvals

Commercial data

Packaging size	1
Net weight	159 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140132757
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
