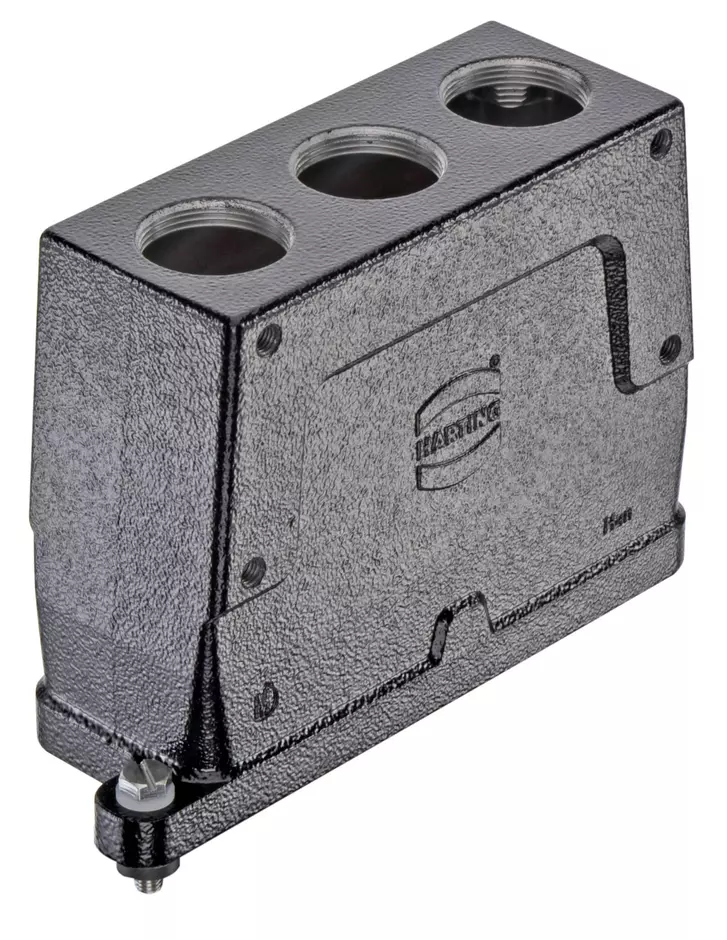

Han 24HPR-enlarged-HTE-SL-3xM32

Article No.: 19 40 024 0468

Image is for illustration purposes only. Please refer to product description.

Hood

Article No.: 19 40 024 0468

to see prices and availability.

to see prices and availability.

Hood

Size: 24 HPR enlarged

Screw locking

Stainless steel

Top entry

3x M32

Material (hood/housing): Aluminium die-cast, Corrosion resistant

Powder-coated

RAL 9005 (jet black)

Identification

Version

Size	24 HPR enlarged
Version	Top entry
Number of cable entries	3
Cable entry	3x M32
Locking type	Screw locking
Field of application	Hoods/housings for harsh outdoor environments
Details	When using Han^® Standard inserts of size B or Han-Modular^® hinged frames, please order adapter 09400009960 separately.

Technical characteristics

Tightening torque (screw locking)	‌ 4 Nm
Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Degree of protection acc. to IEC 60529	IP65
	IP68
	IP69 / IPX9K acc. to ISO 20653
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Material (hood/housing)	Aluminium die-cast
Material (hood/housing)	Corrosion resistant
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 9005 (jet black)
Material (locking)	Stainless steel
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
California Proposition 65 substances	Naphthalene
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R1 (HL 1-3)
Requirement set with Hazard Levels	R7 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	1
Net weight	784 g
Country of origin	China
European customs tariff number	85389099
GTIN	5713140130050
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
