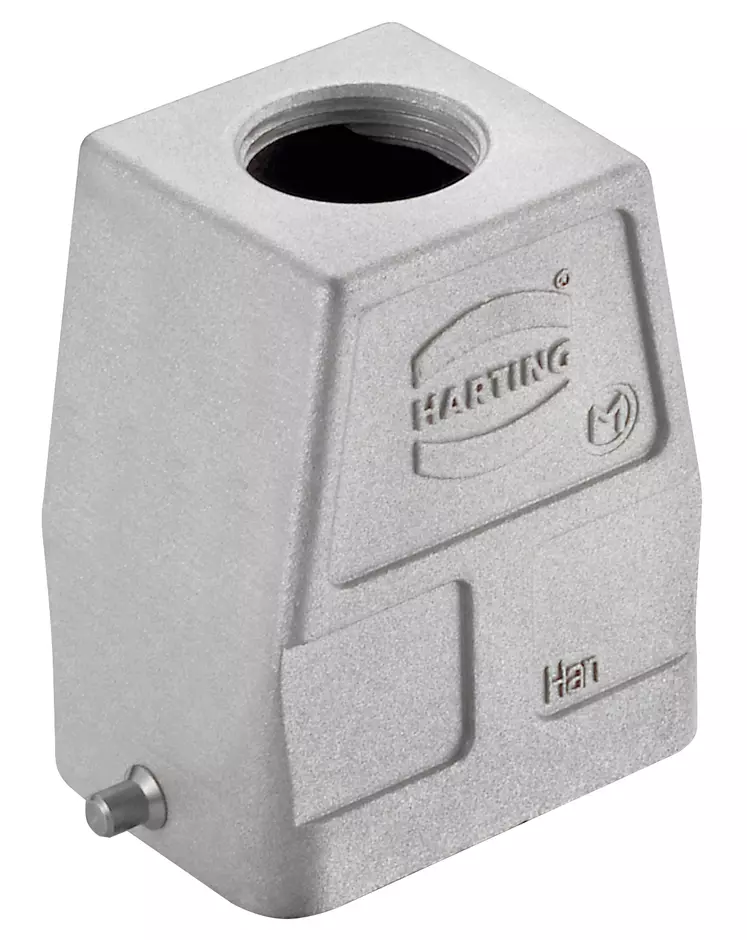

Han 6EMC/B-HTE-M32 (HT)

Article No.: 19 62 806 0447

ConfigurableCustomizable

Image is for illustration purposes only. Please refer to product description.

ConfigurableCustomizable

Hood

Article No.: 19 62 806 0447

to see prices and availability.

to see prices and availability.

Hood

Size: 6 B

High construction

Single locking lever

Top entry

1x M32

Material (hood/housing): Aluminium die-cast

Uncoated

Unpainted

Identification

Version

Technical characteristics

Limiting temperature	-40 ... +125 °C
Limiting temperature	-40 ... +200 °C With Han® High Temp components
Note on the limiting temperature	For use as a connector according to IEC 61984.
Mating cycles	≥ 500
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP66
Type rating acc. to UL 50 / UL 50E	4
Type rating acc. to UL 50 / UL 50E	12

Material properties

Material (hood/housing)	Aluminium die-cast
Surface (hood/housing)	Uncoated
Colour (hood/housing)	Unpainted
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Net weight	110 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140132580
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
