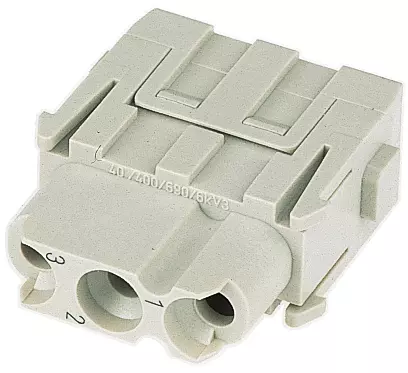

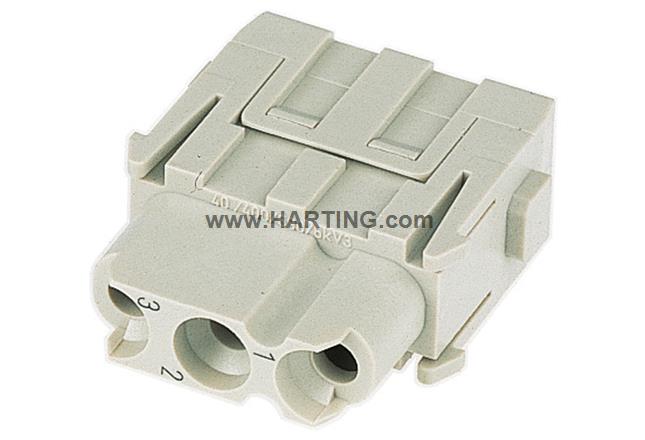

Han C module, crimp female (two part)

Article No.: 09 14 003 3103

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Han® C module

Article No.: 09 14 003 3103

to see prices and availability.

to see prices and availability.

Han® C module

Single module

for increased tensile stress

Crimp termination

Female

Contacts: 3

Conductor cross-section: 1.5 ... 10 mm²

Rated current: ‌40 A

Polycarbonate (PC)

RAL 7032 (pebble grey)

Identification

Category	Modules
Series	Han-Modular^®
Type of module	Han^® C module
Size of the module	Single module
Description of the module	for increased tensile stress

Version

Termination method	Crimp termination
Gender	Female
Number of contacts	3
Details	Please order crimp contacts separately.

Technical characteristics

Conductor cross-section	1.5 ... 10 mm²
Wire outer diameter	≤4.8 mm
	4.8 ... ‌6 mm Stripping length 18 mm
	6 ... ‌7.5 mm Stripping length 18 mm and restricted contact removal
Rated current	‌ 40 A
Rated voltage	500 V
Rated impulse voltage	6 kV
Pollution degree	3
Rated current acc. to UL	40 A
Rated voltage acc. to UL	600 V
Insulation resistance	>10¹⁰ Ω
Stripping length	9.5 mm
Stripping length	18 mm Wire outer diameter > 4.8 mm
Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 10,000
Note on the mating cycles	Mating cycles with other HMC components

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	2
Net weight	10 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140020108
eCl@ss	27440217 Module for industrial connectors (power/signals)
ETIM	EC000438
UNSPSC 24.0	39121552
