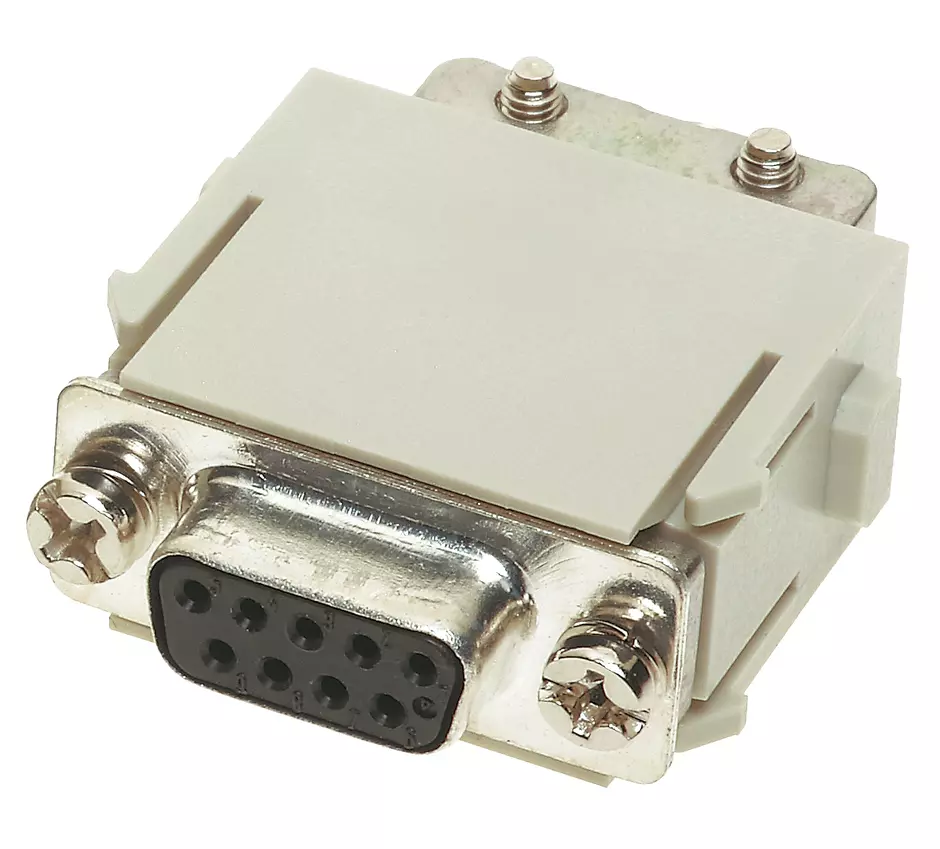

Han D-Sub module, crimp female

Article No.: 09 14 009 3101

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Han® D-Sub module

Article No.: 09 14 009 3101

to see prices and availability.

to see prices and availability.

Han® D-Sub module

Single module

Crimp termination

Female

Contacts: 9

Conductor cross-section: 0.08 ... 0.52 mm²

Rated current: ‌5 A

Polycarbonate (PC), Zinc die-cast

RAL 7032 (pebble grey)

Identification

Version

Termination method	Crimp termination
Gender	Female
Number of contacts	9
Details	Please order crimp contacts separately.

Technical characteristics

Material properties

ECHA SCIP number	5dbb3851-b94e-4e88-97a1-571845975242
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polycarbonate (PC)
Material (insert)	Zinc die-cast
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	15.969 g
Country of origin	Germany
GTIN	5713140020818
eCl@ss	27440218 Module for industrial connectors (data)
ETIM	EC000438
UNSPSC 24.0	39121552
