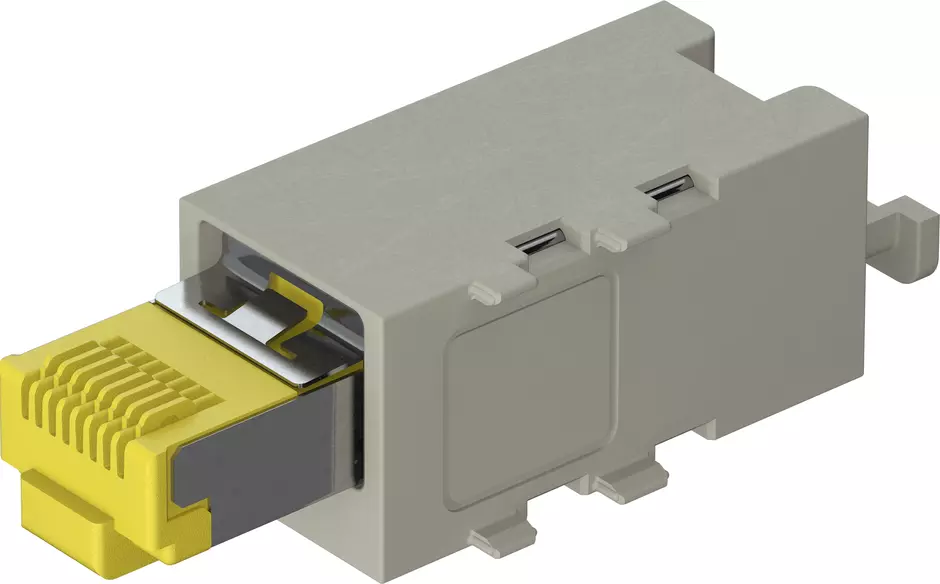

Han Domino RJ45 cube, IDC cat6 M.1

Article No.: 09 14 945 1002

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Han® Domino RJ45 Cube

Article No.: 09 14 945 1002

to see prices and availability.

to see prices and availability.

Han® Domino RJ45 Cube

Domino module

Small tab

IDC insulation displacement termination

Male

Contacts: 8

Rated current: ‌1 A

Polyamide (PA), Polycarbonate (PC)

RAL 7032 (pebble grey)

Identification

Version

Termination method	IDC insulation displacement termination
Gender	Male
Shielding	Shielded
Number of contacts	8

Technical characteristics

Conductor cross-section [AWG]	AWG 27/7 ... AWG 22/7 Stranded
Conductor cross-section [AWG]	AWG 27/1 ... AWG 22/1 Solid
Wire outer diameter	≤1.6 mm
Rated current	‌ 1 A
Rated voltage	50 V
Rated impulse voltage	0.8 kV
Pollution degree	3
Transmission characteristics	Cat. 6 Class E up to 250 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s
Insulation resistance	>10¹⁰ Ω
Limiting temperature	-40 ... +70 °C
Mating cycles	≥ 500

Material properties

Material (insert)	Polyamide (PA)
Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained

Specifications and approvals

Commercial data

Packaging size	1
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140398672
eCl@ss	27440218 Module for industrial connectors (data)
ETIM	EC000438
UNSPSC 24.0	39121552
