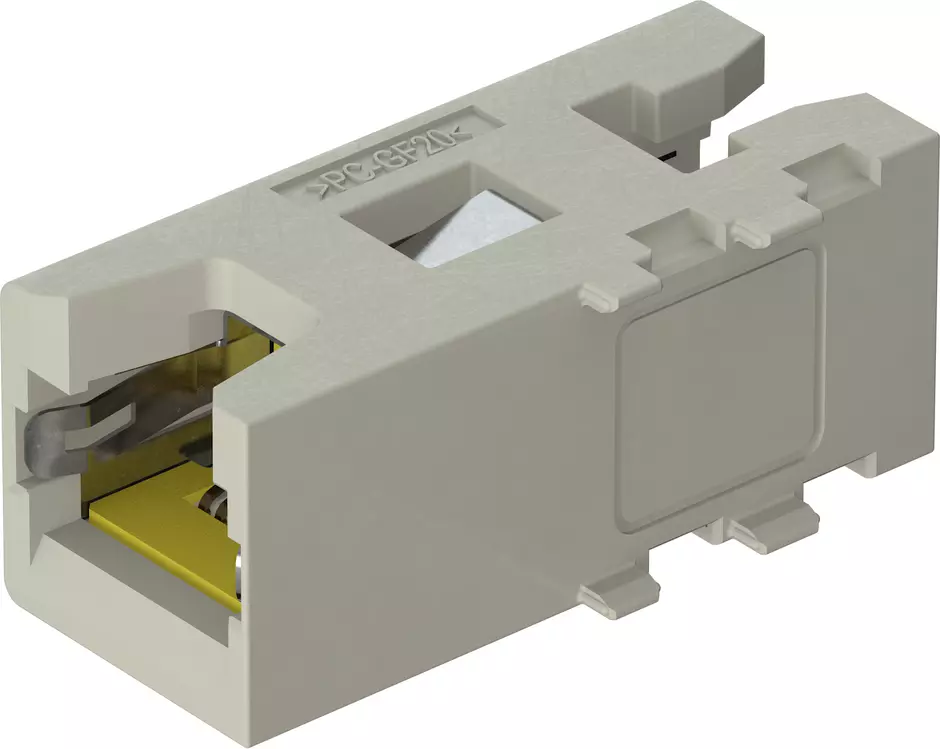

Han Domino RJ45 cube, gender changer F.1

Article No.: 09 14 945 1101

NewConfigurable

Image is for illustration purposes only. Please refer to product description.

NewConfigurable

Han® Domino RJ45 Cube

Article No.: 09 14 945 1101

to see prices and availability.

to see prices and availability.

Han® Domino RJ45 Cube

Domino module

Gender changer, for patch cable, Small tab

Female

Contacts: 8

Rated current: ‌1 A

Polyamide (PA), Polycarbonate (PC), Stainless steel

RAL 7032 (pebble grey)

Identification

Version

Gender	Female
Number of contacts	8

Technical characteristics

Rated current	1 A
Rated voltage	50 V
Rated impulse voltage	0.8 kV
Pollution degree	3
Insulation resistance	>10¹⁰ Ω
Limiting temperature	[-40] ... [+70 °C]
Mating cycles	500
Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	10 Mbit/s
	100 Mbit/s
	1 Gbit/s
	2.5 Gbit/s
	5 Gbit/s

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polyamide (PA)
	Polycarbonate (PC)
	Stainless steel
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Specifications	IEC 60664-1
Specifications	IEC 61984

Commercial data

European customs tariff number	85366990
Packaging size	2
Net weight	7 g
Country of origin	Romania
GTIN	5713140354678
eCl@ss	27440218 Module for industrial connectors (data)
ETIM	EC000438
UNSPSC 24.0	39121552
