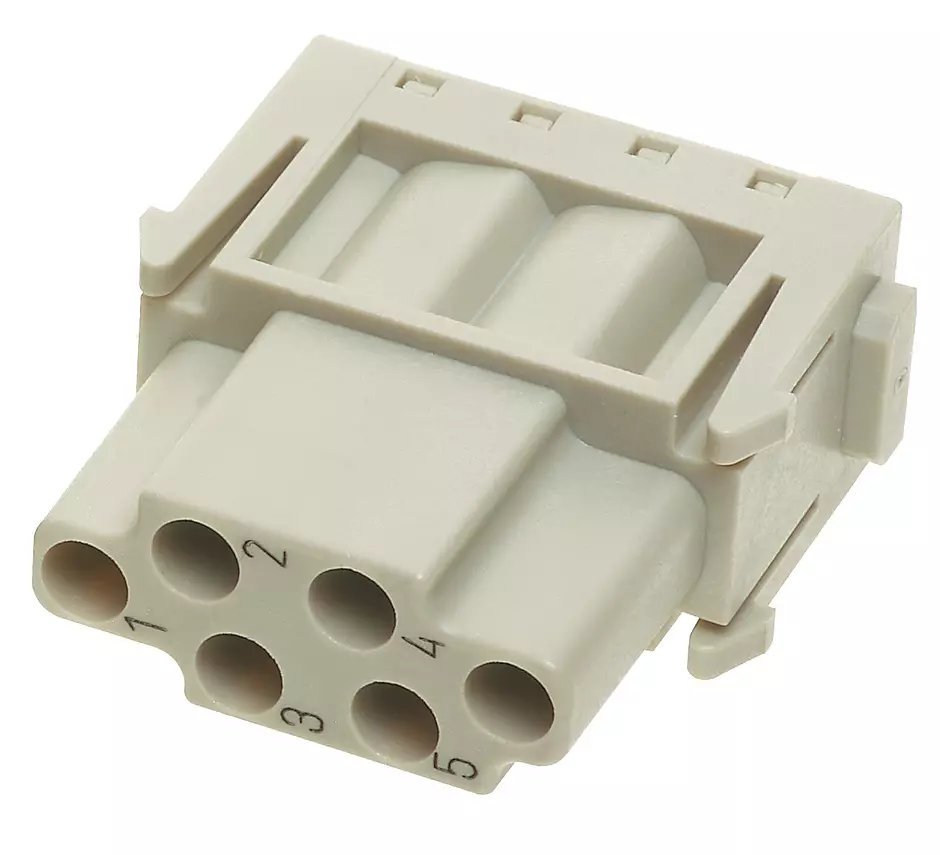

Han E module, crimp female

Article No.: 09 14 006 3101

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Han E® module

Article No.: 09 14 006 3101

to see prices and availability.

to see prices and availability.

Han E® module

Single module

Crimp termination

Female

Contacts: 6

Conductor cross-section: 0.14 ... 4 mm²

Rated current: ‌16 A

Polycarbonate (PC)

RAL 7032 (pebble grey)

Identification

Version

Termination method	Crimp termination
Gender	Female
Number of contacts	6
Details	Please order crimp contacts separately.

Technical characteristics

Material properties

Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Not contained
Fire protection on railway vehicles	EN 45545-2 (2020-08)
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)

Specifications and approvals

Commercial data

Packaging size	2
Net weight	0.003 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140020511
eCl@ss	27440217 Module for industrial connectors (power/signals)
ETIM	EC000438
UNSPSC 24.0	39121552
